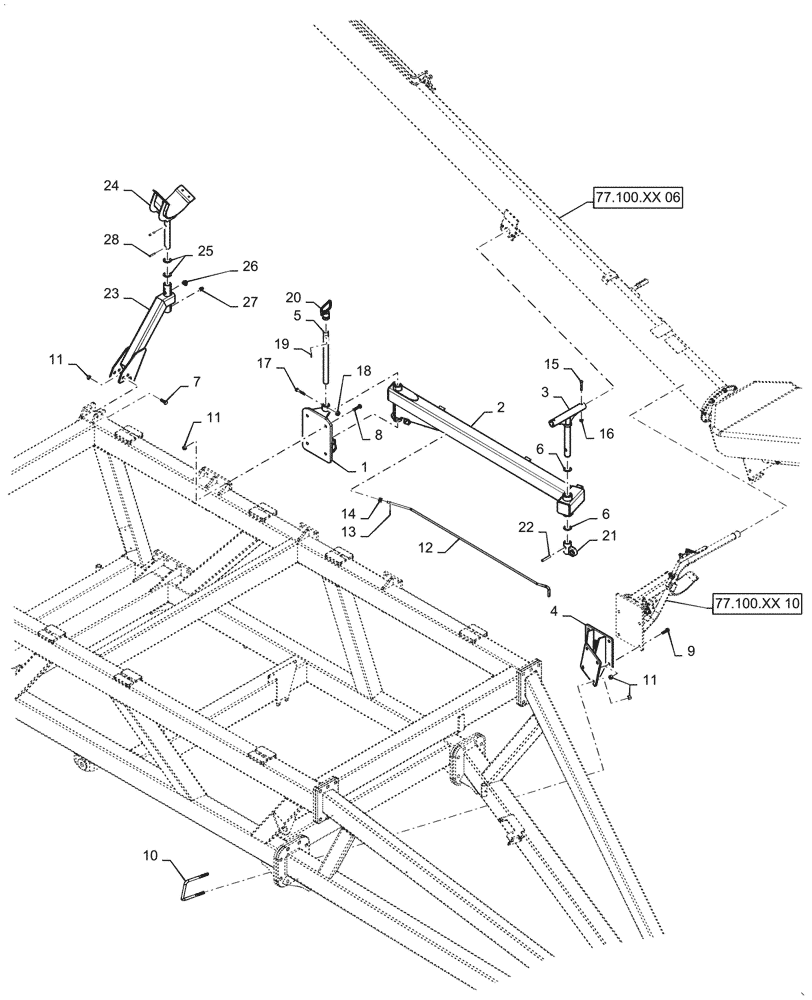

Запчасти Case IH 4765 (77.100.XX[11]) - MANUAL CONTROL AUGER MOUNTS 350 TOW BETWEEN BUSHEL (77) - SEEDING/PLANTING

1

47747646

MOUNT

Manual Auger Black

1шт.

2

47748216

ARM

Auger Inner

1шт.

3

47839650

SUPPORT

Auger T

1шт.

4

47745126

MOUNT

Auger Latch

1шт.

5

84557601

PIN,31.75mm OD x 442mm L

1шт.

6

23261

WASHER

1.515 ID 2.25"

2шт.

7

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

8

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

4шт.

9

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

10

47534143

U-BOLT,M16 x 2, Square, 180mm W x 175mm L

2шт.

11

146988

LOCK NUT,M16 x 2, Cl 8

14шт.

12

47748656

ROD

Auger Arm 350

1шт.

13

130078

LOCK PIN,M4 x 30, Slotted

1шт.

14

87505489

COMPRESSION SPRING

1шт.

15

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

16

100038

NUT,M12 x 1.75, Cl 8

2шт.

17

86518210

BOLT,Hex, M14 x 75mm, Cl 8.8

1шт.

18

412370

NUT,M14 x 2, Cl 8

1шт.

19

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

1шт.

20

84583373

SUPPORT

Hose Guide Swivel

1шт.

21

47839837

LUG

Auger Pivot

1шт.

22

86624086

PIN,5/8" x 3", Coiled

1шт.

23

47744192

SUPPORT

Auger Rear

1шт.

24

47744197

SUPPORT

Auger Rear

1шт.

25

1313

WASHER,1-1/2" ID x 2-1/4" OD x 10 Ga Thk

2шт.

26

86585176

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

1шт.

27

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

28

381928

ROLL PIN,10mm OD x 50mm L, Slotted

2шт.
