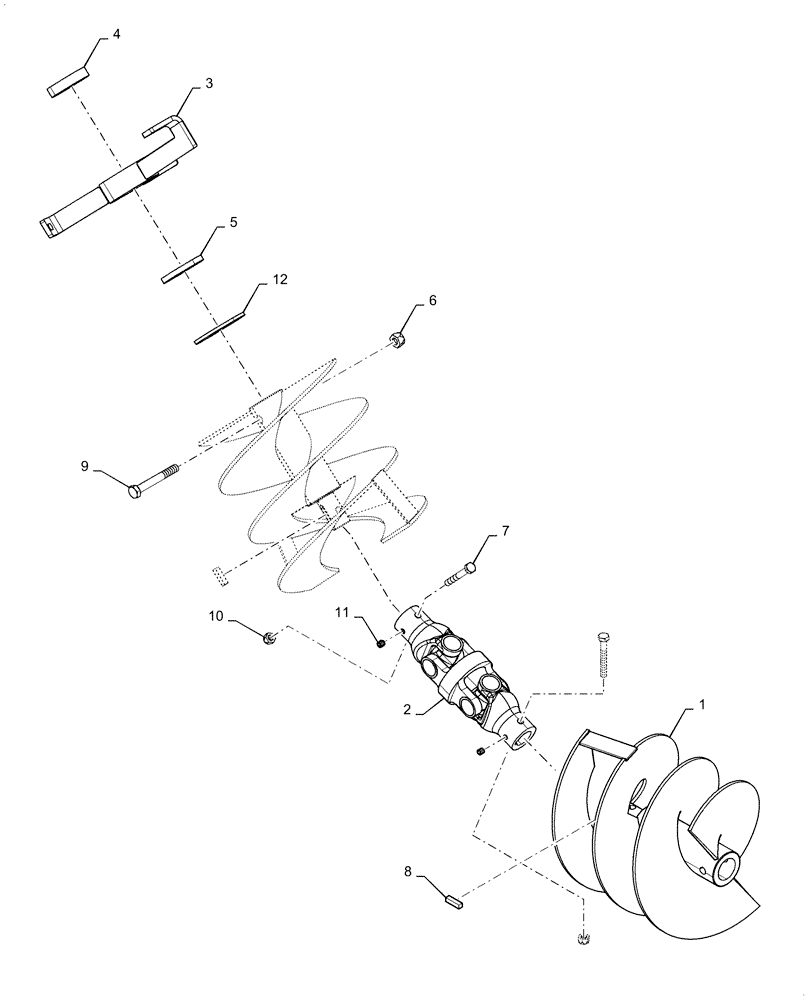

Запчасти Case IH 4765 (77.100.XX[08]) - AUGER FLIGHT HOPPER 350 BUSHEL (77) - SEEDING/PLANTING

1

47869121

AUGER FLIGHT

Coupler

2шт.

2

47771441

UNIVERSAL JOINT

Double

1шт.

3

47842437

SUPPORT

Auger Flight

1шт.

4

47860878

BALL BEARING

Auger

1шт.

5

47860924

SEAL

Manual

1шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

7

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

8

47782721

KEY

2шт.

9

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

1шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

11

86836489

SET SCREW,Hex Skt, M8 x 8mm, Cup Pt

2шт.

12

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

1шт.
