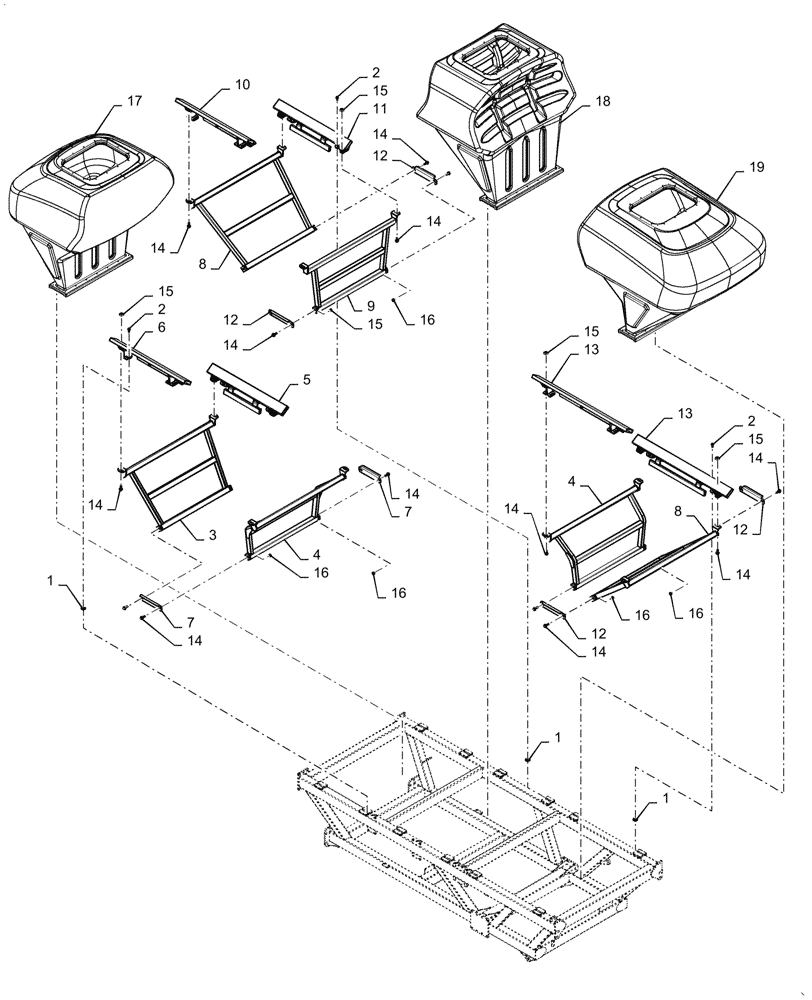

Запчасти Case IH 4765 (77.100.AC[06]) - TANK/CRADLE 430,460 BUSHEL (77) - SEEDING/PLANTING

1

47642012

FASTENER

T-Nut M16

24шт.

2

47427860

BOLT,Hex, M16 x 35mm, Cl 8.8

24шт.

3

47633835

SUPPORT

Tank Cradle Step Black

1шт.

4

47633830

SUPPORT

Tank Cradle Bent Black

2шт.

5

47632896

SIDE RAIL

Right Front Black

1шт.

6

47637591

SIDE RAIL

Left Front Black

1шт.

7

47638722

SUPPORT

Lower Black

2шт.

8

47633828

SUPPORT

Tank Cradle Black

2шт.

9

47633833

SUPPORT

Cradle Rail Black

1шт.

10

47632866

SIDE RAIL

Cradle 105 Bushel Black

1шт.

11

47632868

SIDE RAIL

Cradle 105 Bushel Black

1шт.

12

47638718

SUPPORT

Cradle Lower Black

4шт.

13

47632662

SIDE RAIL

Cradle 190 Bushel Black

2шт.

14

86511852

BOLT,Hex Flg, M20 x 50, 8.8

24шт.

15

87535798

SQUARE NUT

12шт.

16

9847024

NUT,M20, Cl 10

16шт.

17

47451561

TANK

140 Bushel

1шт.

18

47451560

TANK

105 Bushel

1шт.

19

47451562

TANK

190 Bushel

1шт.
