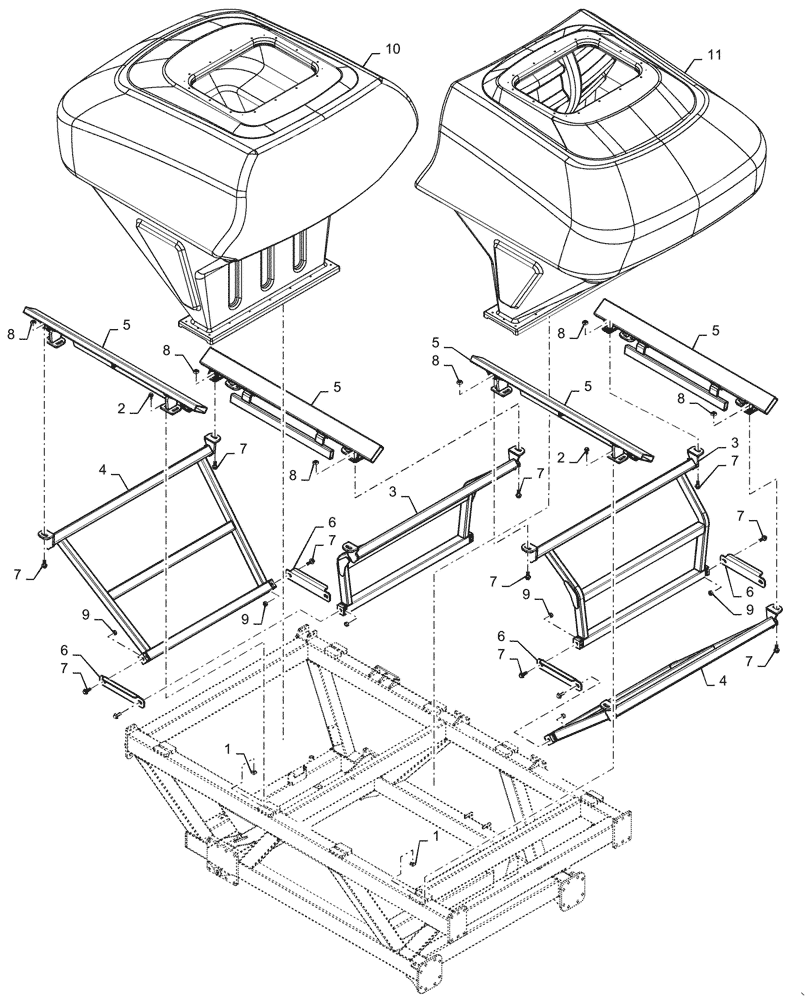

Запчасти Case IH 4765 (77.100.AC[05]) - TANK/ CRADLE 350 BUSHELL (77) - SEEDING/PLANTING

1

47642012

FASTENER

Nut M16

16шт.

2

47427860

BOLT,Hex, M16 x 35mm, Cl 8.8

16шт.

3

47633830

SUPPORT

Tank Cradle Bent Black

2шт.

4

47633828

SUPPORT

Tank Cradle Black

2шт.

5

47632662

SIDE RAIL

Cradle Rail

4шт.

6

47638718

SUPPORT

Lower Black

4шт.

7

86511852

BOLT,Hex Flg, M20 x 50, 8.8

16шт.

8

87535798

SQUARE NUT

8шт.

9

9847024

NUT,M20, Cl 10

8шт.

10

47451562

TANK

190 Bushel

1шт.

11

47524197

TANK

160 Bushel

1шт.
