(61.904.AB[10]) - METERING SEED SMALL HOSE, 555, 580 BUSHEL, 8 RUN, DOUBLE SHOOT, TOW BETWEEN

Запчасти Case IH 4585 (61.904.AB[10]) - METERING SEED SMALL HOSE, 555, 580 BUSHEL, 8 RUN, DOUBLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM

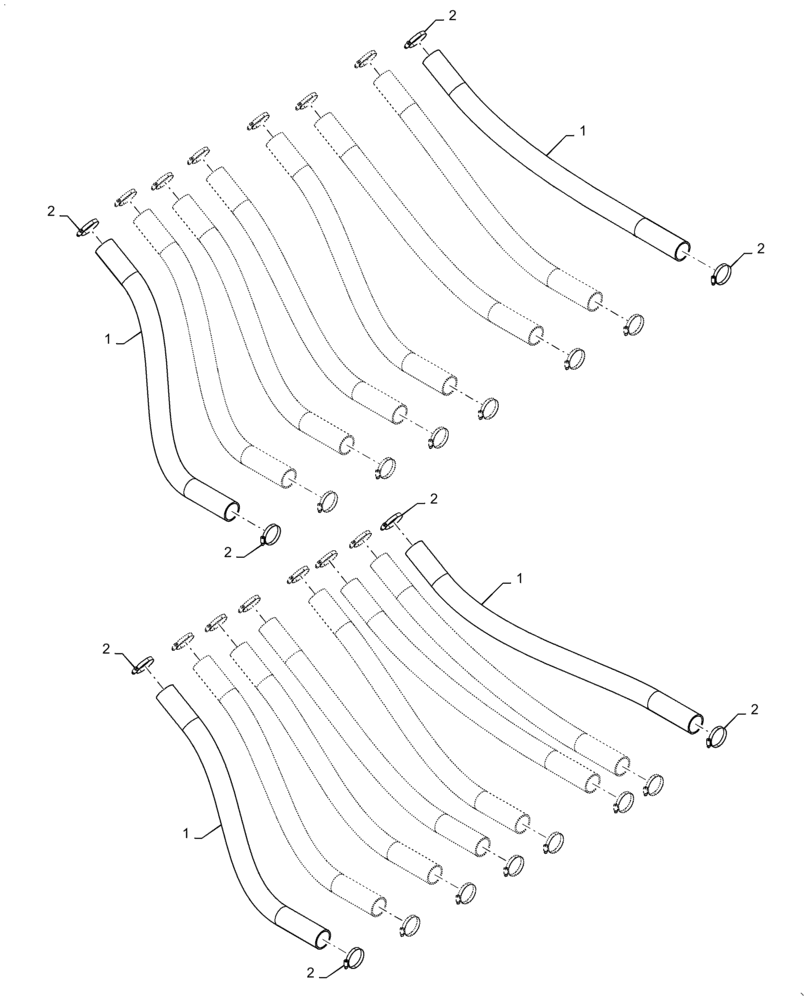

Схема запчастей Case IH 4585 - (61.904.AB[10]) - METERING SEED SMALL HOSE, 555, 580 BUSHEL, 8 RUN, DOUBLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM
2
2
2
2
2
2
2
1
1
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47679558

HOSE, BULK

Cut to Length of 1100mm

1шт.

1

47679558

HOSE, BULK

Cut to Length of 1150mm

9шт.

1

47679558

HOSE, BULK

Cut to Length of 1200mm

5шт.

1

47679558

HOSE, BULK

Cut to Length of 1250mm

1шт.

2

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

32шт.

Выбрано товаров: 5
