(61.904.AB[08]) - METERING SEED SMALL HOSE, 555, 580 BUSHEL, 6 RUN, DOUBLE SHOOT, TOW BETWEEN

Запчасти Case IH 4585 (61.904.AB[08]) - METERING SEED SMALL HOSE, 555, 580 BUSHEL, 6 RUN, DOUBLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM

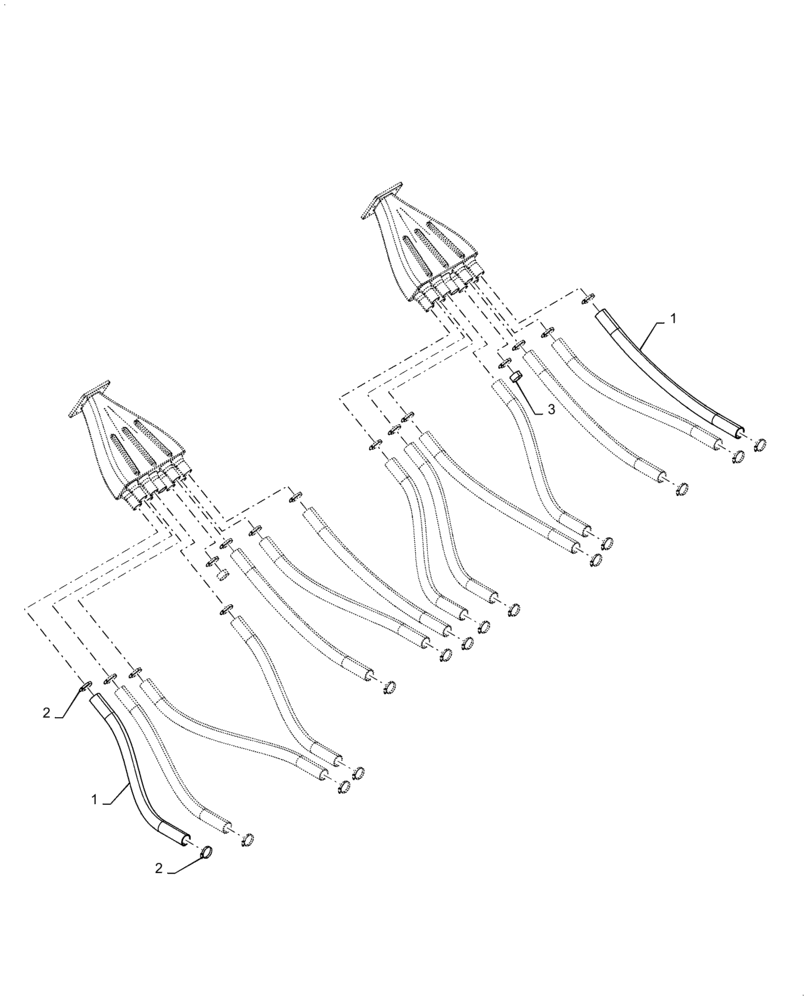

Схема запчастей Case IH 4585 - (61.904.AB[08]) - METERING SEED SMALL HOSE, 555, 580 BUSHEL, 6 RUN, DOUBLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM
2
3
1
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47679558

HOSE, BULK

Cut to Length of 100mm

1шт.

1

47679558

HOSE, BULK

Cut to Length of 1150mm

4шт.

1

47679558

HOSE, BULK

Cut to Length of 1200mm

6шт.

1

47679558

HOSE, BULK

Cut to Length of 1250mm

2шт.

1

47679558

HOSE, BULK

Cut to Length of 1300mm

1шт.

2

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

28шт.

3

4731

CAP

4шт.
