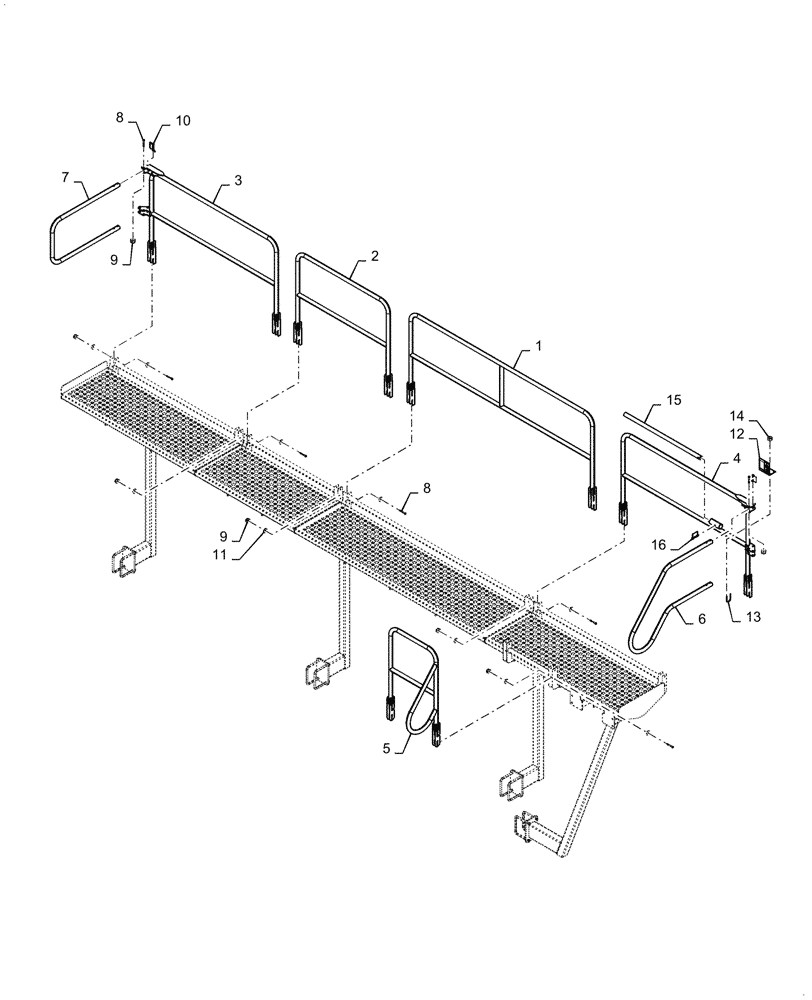

Запчасти Case IH 4585 (80.150.AJ[21]) - PLATFORM HANDRAILS 950 (80) - CROP STORAGE/UNLOADING

1

47454916

HANDRAIL

Long Platform Black

1шт.

2

47537957

HANDRAIL

Short Platform Black

1шт.

3

47615369

HANDRAIL

Front Black

1шт.

4

47615876

HANDRAIL

Outside

1шт.

5

47487633

HANDRAIL

Platform Corner

1шт.

6

47615895

PLATFORM

Rail

1шт.

7

47615901

PLATFORM

Rail

1шт.

8

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

24шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

24шт.

10

87574044

PIN

4шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

40шт.

12

47698290

BRACKET

Mount

1шт.

13

352892A1

U-BOLT

2шт.

14

68841

NUT,M8 x 1.25, Cl 8

4шт.

15

47908238

TUBE

Entry

1шт.

16

647695

PIN,7.94mm OD

1шт.
