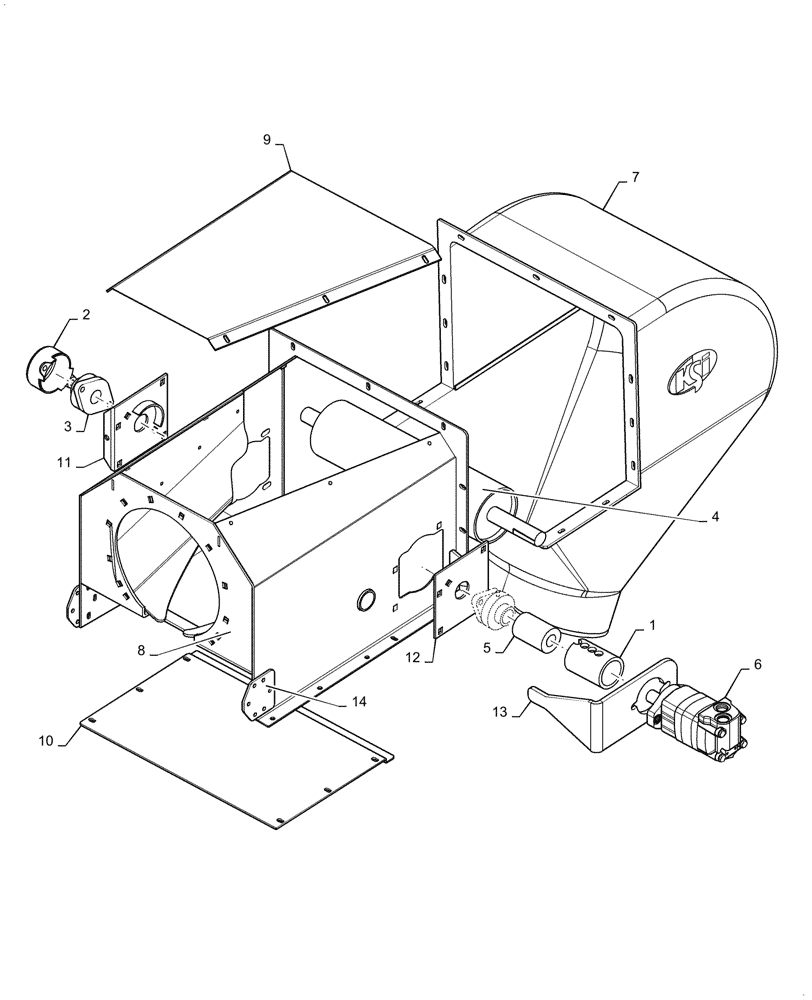

Запчасти Case IH 4585 (77.100.XX[21]) - CONVEYOR HEAD (77) - SEEDING/PLANTING

1

47879303

TUBE

SHAFT GUARD, 1"-1-1/4"

1шт.

2

47753220

COVER

BEARING COVER, 1-1/4" , MOLDED

1шт.

3

47686591

FLANGE

FLANGE BLOCK 1 1/4" SHAFT BEARING 8" CONVE

2шт.

4

47686592

DRUM

DRIVE ROLLER, 5"

1шт.

5

47879308

CLAMP

RIGID CLAMP COUPLER, 1" DIA. TO 1-1/4" DIA., STEEL

1шт.

6

47686594

MOTOR-PUMP

HYD. MOTOR, 8.0 CU IN, 1" SHAFT

1шт.

7

47686601

SPOUT

MOLDED

1шт.

8

47686602

HOUSING

UPPER HOUSING ASSEMBLY

1шт.

9

47686611

COVER

COVER, TOP

1шт.

10

47686612

COVER

COVER, BOTTOM

1шт.

11

47686613

BRACKET

UPPER BEARING - LH

1шт.

12

47686616

BRACKET

UPPER BEARING - RH

1шт.

13

47879313

ARM

TORQUE ARM

1шт.

14

47686620

PLATE

CONNECTOR

2шт.
