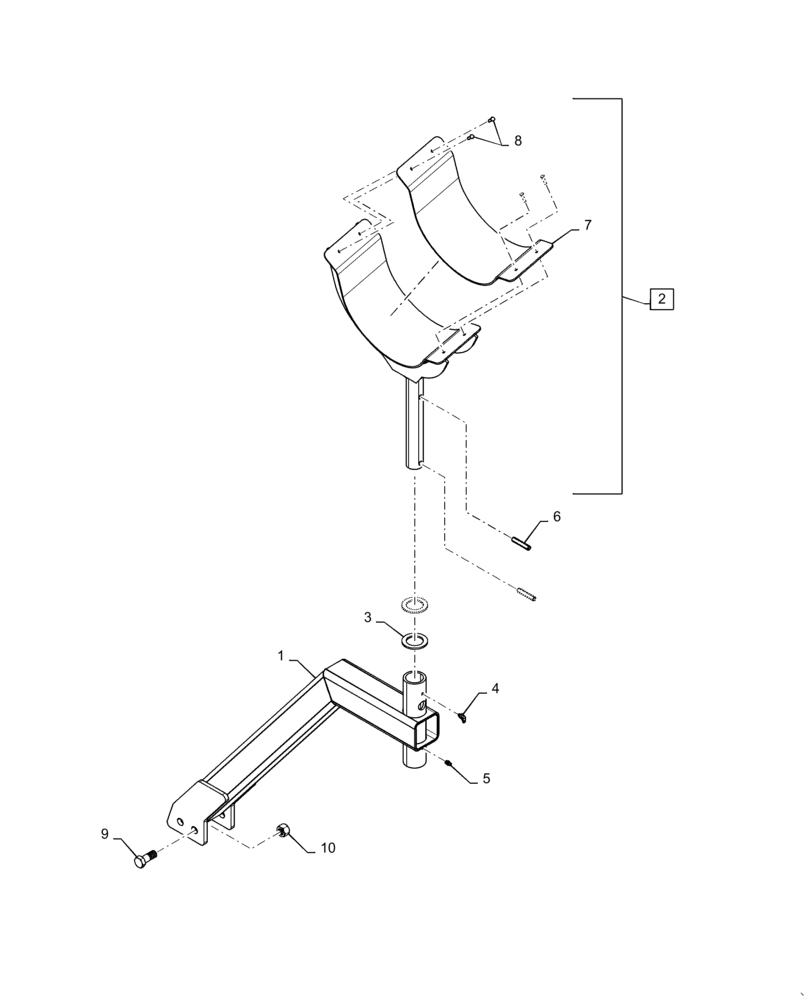

Запчасти Case IH 4465 (77.100.AB[05]) - 435, 460, 580 BUSHEL, REAR HYDRAULIC AUGER SADDLE (77) - SEEDING/PLANTING

1

47505770

SUPPORT

Auger

1шт.

2

47505776

SUPPORT

Auger Saddle, Incl 7 - 8

1шт.

3

1313

WASHER,1-1/2" ID x 2-1/4" OD x 10 Ga Thk

2шт.

4

86585176

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

1шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

6

381928

ROLL PIN,10mm OD x 50mm L, Slotted

2шт.

7

9720

WEAR STRIP

Poly, Rear Saddle

1шт.

8

8670

RIVET,Pop, 3/16" OD x 3/4" L

4шт.

9

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

10

146988

LOCK NUT,M16 x 2, Cl 8

2шт.
