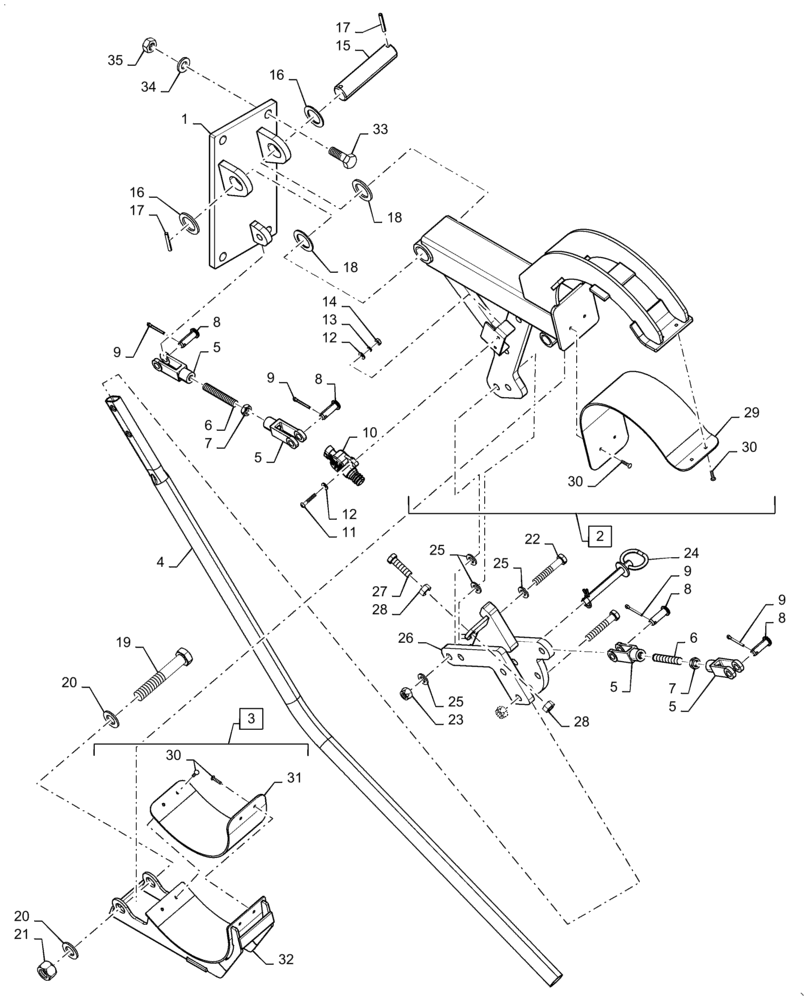

Запчасти Case IH 4465 (77.100.AB[04]) - 435, 460, 580 BUSHEL, FRONT HYDRAULIC AUGER SADDLE (77) - SEEDING/PLANTING

1

47630439

MOUNT

Front Saddle

1шт.

2

47630446

SUPPORT

Top Front Saddle, Incl 29 - 30

1шт.

3

47636559

SUPPORT

Bottom Front Saddle, Incl 30 - 32

1шт.

4

47817914

TUBE

Auger Handle

1шт.

5

47416693

CLEVIS PIN

4шт.

6

47416694

THREADED ROD,1/2" - 13 x 3-1/8", Gr 8

2шт.

7

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

8

439-1824

HEADED PIN,1/2" x 1 1/2", G2

4шт.

9

86523851

COTTER PIN,5/32" x 1 1/4"

4шт.

10

87484878

LIMIT SWITCH

Snap Action

1шт.

11

86511915

SCREW,Pan, #8 - 32 x 1"

2шт.

12

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

4шт.

13

87812

LOCK WASHER,#8

2шт.

14

87653

NUT,#8-32

2шт.

15

47630465

PIN,31.75mm OD x 142mm L

Auger Support

1шт.

16

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

2шт.

17

87343

LOCK PIN,6.35mm OD x 44.45mm L, Slotted

2шт.

18

1312

WASHER,1 9/32" x 2" x .120"

2шт.

19

43188

SCREW,Hex, M20 x 120mm, Cl 8.8

1шт.

20

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

21

725637

NUT,M20 x 2.5, Cl 8

1шт.

22

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

23

100038

NUT,M12 x 1.75, Cl 8

2шт.

24

432577A1

HITCH PIN,12.7mm OD x 127mm L

2шт.

25

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

26

47813806

LATCH

Auger Latch

1шт.

27

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

28

9706685

NUT,M12 x 1.75, Cl 8

2шт.

29

47406571

PAD

Poly Upper Surface

1шт.

30

8670

RIVET,Pop, 3/16" OD x 3/4" L

8шт.

31

47404590

PAD

Poly Lower Surface

1шт.

32

47636560

SUPPORT

Front Saddle

1шт.

33

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

4шт.

34

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

35

146988

LOCK NUT,M16 x 2, Cl 8

4шт.
