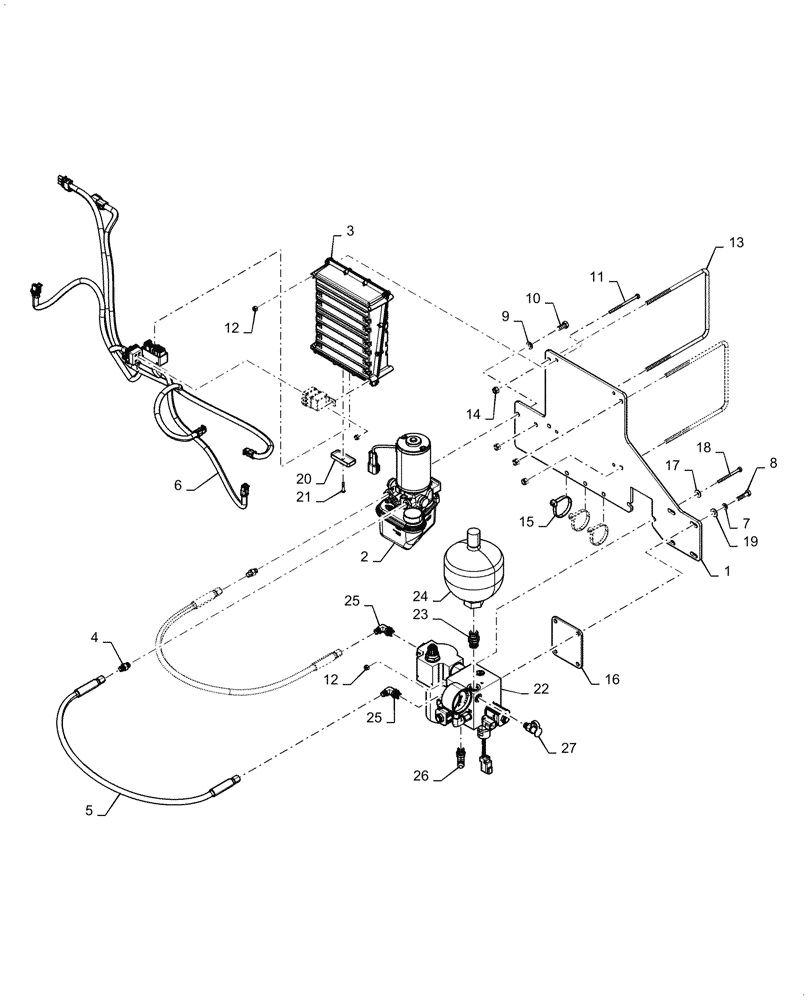

Запчасти Case IH 4465 (33.202.AX[02]) - BRAKING SYSTEM MOUNT (33) - BRAKES & CONTROLS

1

47979055

MOUNTING PLATE

Plate Brake system

1шт.

2

47971755

PUMP

Brake 2L Reservoir

1шт.

3

84388675

ECU

Rate

1шт.

4

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

2шт.

5

47798526

HYDRAULIC HOSE

6.3 x 800mm

2шт.

6

47922305

WIRE HARNESS

Brake ECU

1шт.

7

80681

LOCK WASHER,5/16"

4шт.

8

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

10

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

4шт.

12

353308

NUT,M6 x 1.0, Cl 8

6шт.

13

47733787

U-BOLT

M8

2шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

15

87502038

CABLE TIE

Small

3шт.

16

47839737

SPACER

Valve Block

1шт.

17

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

18

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

19

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

20

425269A1

DUST CAP

1шт.

21

86511923

SCREW,Pan, #10 - 24 x 1"

1шт.

22

47754878

CONTROL

Braking System

1шт.

23

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

1шт.

24

47755740

ACCUMULATOR

1 Litter

1шт.

25

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

2шт.

26

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

27

86502603

COUPLING

A

1шт.
