Запчасти Case IH 4465 (77.100.XX[20]) - CONVEYOR TAIL (77) - SEEDING/PLANTING

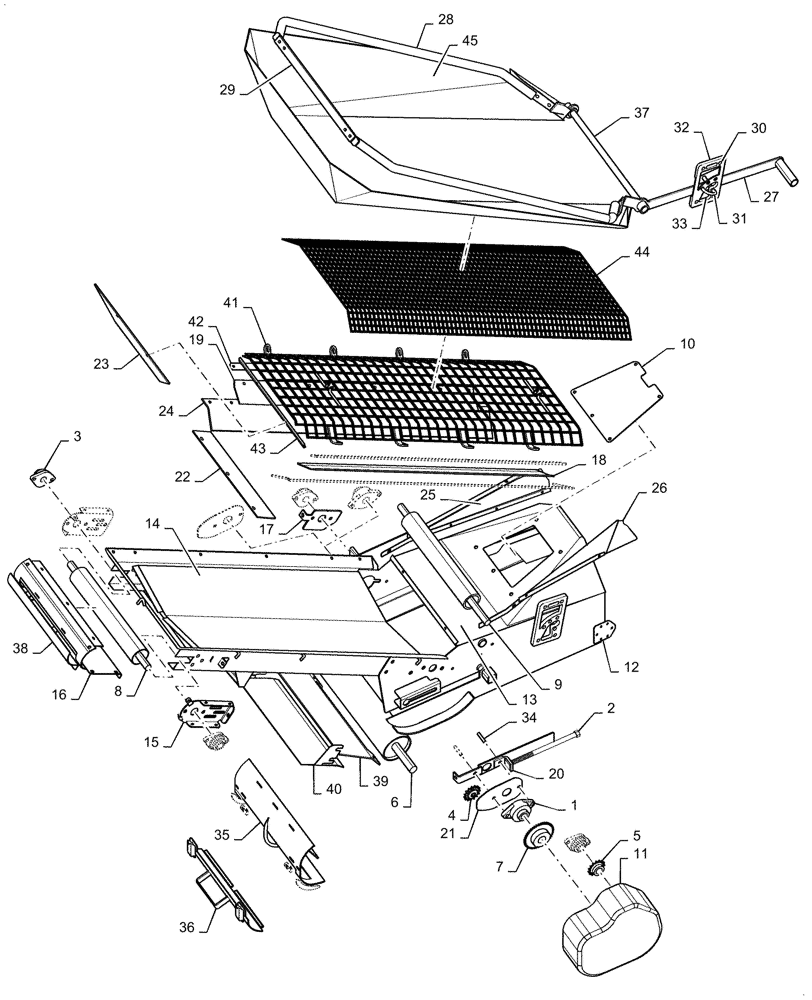

Схема запчастей Case IH 4465 - (77.100.XX[20]) - CONVEYOR TAIL (77) - SEEDING/PLANTING
28
7
21
22
6
25
10
16
24
42
26
11
40
5
4
12
44
36
1
32
43
29
23
18
14
31
37
2
35
20
19
30
8
39
17
3
13
33
15
38
27
34
9
45
41

Артикул

Название

Примечание

Количество

1

47686591

FLANGE

BLOCK 1 1/4" SHAFT BEARING 8" CONVE

2шт.

2

84056369

BOLT,Hex, M16 x 300mm, Cl 8.8

1шт.

3

47751992

BLOCK

FLANGE BLOCK 1" SHAFT BEARING

4шт.

4

47753227

SPROCKET

Idler

1шт.

5

47753226

SPROCKET

1" BORE W/KEYWAY

1шт.

6

47686592

DRUM

DRIVE ROLLER, 5"

1шт.

7

47753225

SPROCKET

1-1/4" BORE W/KEYWAY

1шт.

8

47686596

ROLLER

IDLER ROLLER, 3"

1шт.

9

47686597

ROLLER

DRIVE ROLLER, 3"

1шт.

10

47751964

COVER

TAIL BOX TRANSITION

1шт.

11

47752007

GUARD

LOWER DRIVE

1шт.

12

47686620

PLATE

CONNECTOR

2шт.

13

47686631

PLATE

TAIL BOX TRANSITION

1шт.

14

47686643

BRACKET

TAIL

1шт.

15

NS

NOT SERVICED

3" DRIVE ROLLER GUIDE

2шт.

16

47751854

MOUNT

TAIL CLEANOUT MOUNT

1шт.

17

47686650

PLATE

3" DRIVE ROLLER GUIDE

1шт.

18

47751996

COVER

HOLD DOWN, FLAP LEFT

1шт.

19

47751998

COVER

HOLD DOWN, FLAP RIGHT

1шт.

20

47686652

GUIDE

5" ROLLER GUIDE

2шт.

21

47686656

MOUNT

5" BEARING MOUNT

2шт.

22

47751940

COVER

TAIL REAR FLAP

1шт.

23

47752001

COVER

FLAP, HOPPER BACK

1шт.

24

47751969

COVER

FLAP, HOPPER SIDE

2шт.

25

47686658

MOUNT

BOX FLAP MOUNT LEFT

1шт.

26

47686659

PILLOW BLOCK

BOX FLAP MOUNT RIGHT

1шт.

27

47686661

HANDLE

HOPPER HANDLE RIGHT

1шт.

28

47752014

SUPPORT

HOPPER RIM

2шт.

29

47752017

SUPPORT

HOPPER RIM END

1шт.

30

47752018

HANDLE

HANDLE LATCH PLATE

1шт.

31

47686670

HANDLE

HANDLE LATCH PIN

1шт.

32

47752020

HANDLE

HANDLE LATCH, UPPER STOP

1шт.

33

47686669

HANDLE

HOPPER HANDLE, LOWER STOP

1шт.

34

NS

NOT SERVICED

Key 1" Shaft

2шт.

35

47751923

MOUNT

INCLINE CLEANOUT MOUNT ASSY

1шт.

36

47751938

MOUNT

INCLINE CLEANOUT DOOR

1шт.

37

47751920

HANDLE

HOPPER HANDLE LEFT

1шт.

38

47751896

DOOR

TAIL CLEANOUT DOOR

1шт.

39

47894227

COVER

FLOWGUARD FLAP

1шт.

40

47752010

SUPPORT

FLOWGUARD SUPPORT

1шт.

41

47752015

SCREEN

2"x 2"

1шт.

42

47752002

STRAP

STRAP, SIDE

2шт.

43

47752000

STRAP

STRAP, END

1шт.

44

NS

NOT SERVICED

Mesh Screen

1шт.

45

47752009

CANVAS

Hopper

1шт.

46

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

For #10

7шт.

47

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

For 19,22,24,41,42

14шт.

48

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

For 19,22,24,41,42

14шт.

49

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

For Plate #12

4шт.

50

86619800

FLANGE NUT,M6 x 1, Cl 8

For Plate #12

4шт.
