Запчасти Case IH 4465 (77.100.XX[18]) - HYDRAULIC AUGER MOTOR TUBE 10 INCH (77) - SEEDING/PLANTING

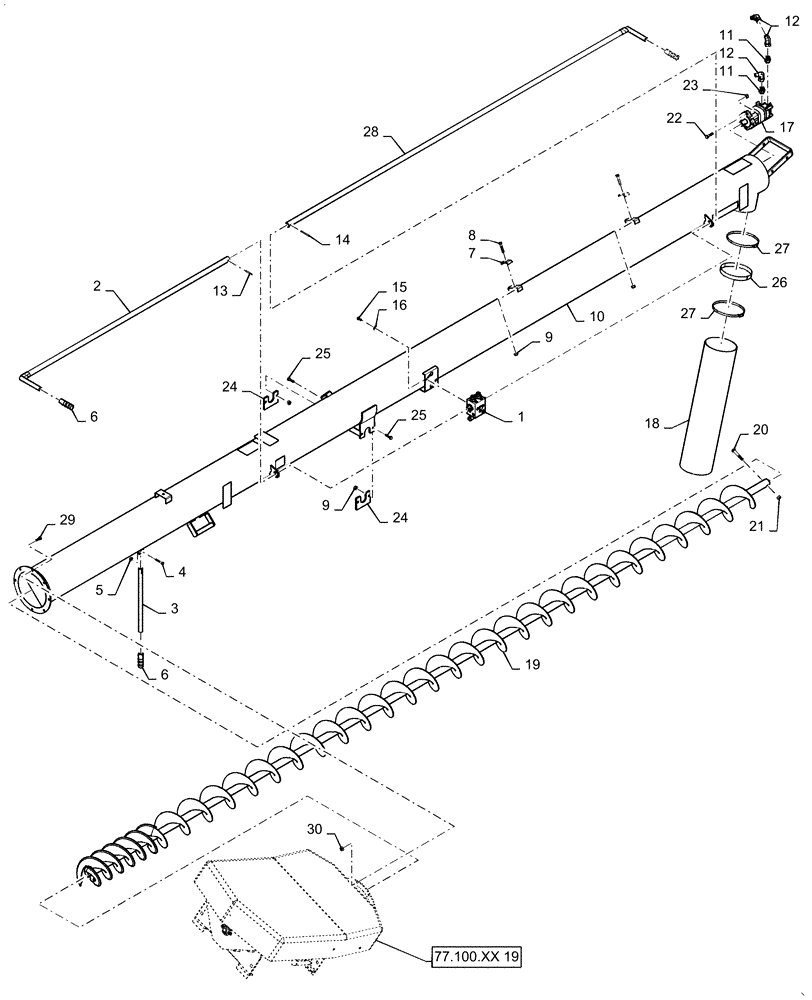

Схема запчастей Case IH 4465 - (77.100.XX[18]) - HYDRAULIC AUGER MOTOR TUBE 10 INCH (77) - SEEDING/PLANTING
9
23
12
14
24
27
11
24
9
28
25
15
18
11
77.100.xx 19
30
16
1
7
6
26
13
3
12
27
21
17
22
8
25
5
2
29
19
6
4
10
20

Артикул

Название

Примечание

Количество

1

84583850

HYDRAULIC VALVE

Rotary

1шт.

2

84589126

CONTROL

Auger Valve Lower

1шт.

3

84589123

ROD

Control Auger

1шт.

4

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

6

23781

GRIP

Handle Yellow

3шт.

7

86983984

CLAMP

Hose

2шт.

8

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

10

47818619

CHUTE

Auger 10"

1шт.

11

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2шт.

12

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3шт.

13

6248

LOCK PIN,5/16" x 1 1/2", Slotted

1шт.

14

8559

PIN,5/16" x 3"

1шт.

15

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

17

47857782

MOTOR-PUMP

Hydraulic 2000

1шт.

18

47407473

HOSE

Auger Discharge

1шт.

19

84384047

AUGER FLIGHT

10 Inch

1шт.

20

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

21

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

1шт.

22

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

23

100038

NUT,M12 x 1.75, Cl 8

4шт.

24

GL-657

RETAINER

Auger Tube

2шт.

25

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

26

84300017

ADHESIVE STRIP

Anti Slip

1шт.

27

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

2шт.

28

84424482

CONTROL

1шт.

29

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

30

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

Выбрано товаров: 30
