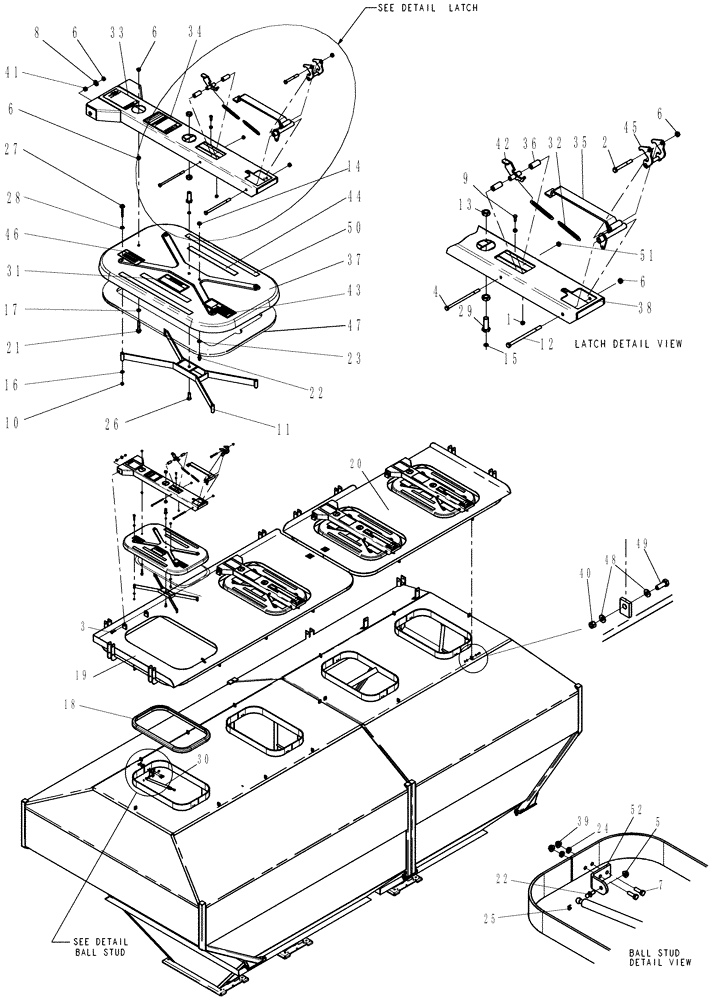

Запчасти Case IH 3580 (80.154.01) - LID ASSEMBLY, PLATFORM (80) - CROP STORAGE/UNLOADING

1

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

4

280929

BOLT,Hex, 5/16" - 18 x 6", Gr 5

4шт.

5

281010

LOCK NUT,7/8"-14, GC

4шт.

6

88902

NUT,3/8"-16

8шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

9

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

10

280129

NUT,1/4"-20

4шт.

11

GM-286

BRACKET

lid

1шт.

12

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

13

86632556

JAM NUT,Jam, 5/8"-11, G5

8шт.

14

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

15

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

4шт.

16

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

16шт.

17

412911A1

WASHER

poly 3/8" id

3шт.

18

21679

RUBBER SEAL

hatch lid

4шт.

19

84213533

PLATFORM

Top Rear

10шт.

20

84205443

PLATFORM

Top Front

2шт.

21

5110

BOLT

3/8"-16 x 2, G2.5, Full Thread

4шт.

22

22186

STUD

10 mm ball

4шт.

23

22404

WASHER

sealing 5/16" ss neop

4шт.

24

9037

WASHER

poly 5/16" id

8шт.

25

9803210

SPRING

retainer 23/64" id x 31/64" long

4шт.

26

22820

SCREW

cap 3/8" x 1 1/4" fh hx-skt

4шт.

27

412923A1

BOLT

1/4"-20 x 2 1/4" G2

16шт.

28

412924A1

WASHER

poly 1/4" id

4шт.

29

412925A1

SPECIAL BOLT

standoff 5/8"-11 x 1 3/4" m/f

4шт.

30

22854

GAS STRUT

300 mm st/685 mm

1шт.

31

87506429

DECAL

attention do not open

1шт.

32

87506209

TENSION SPRING

1/16" wire x 1/2" od x 4" long

4шт.

33

GD-500.71

WARNING DECAL

Do Not Ride

1шт.

34

GD-500.79

WARNING DECAL

Stop Fan

1шт.

35

GI-615

LATCH

handle

1шт.

36

GI-617

SPACER

lid arm

8шт.

37

GI-618

LID

tank

1шт.

Includes decals

1шт.

38

GI-756

ARM

lid

1шт.

Includes GD-500.71 and GD-500.79

1шт.

39

9586

FLANGE NUT

flange 5/16" serrated

8шт.

40

280129

NUT,1/4"-20

1шт.

41

GL-333

BUSHING

hatch lid arm pivot

8шт.

42

GL-335

CONTROL LEVER

lock, hatch

4шт.

43

GL-700.20

CAUTION DECAL

lid raises

1шт.

44

425040A1

ADHESIVE STRIP

anti-skid 1" wide

8шт.

12"

1шт.

45

GM-433

LATCH

jaw

4шт.

46

VF-760.10

DECAL

air leaks affect

1шт.

47

84593992

SEAL

2 Piece Lid Seal, Flat, Adhesive Backed

2шт.

48

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

49

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

50

425040A1

ADHESIVE STRIP

anti-skid 1" wide

8шт.

18"

1шт.

51

280736

NUT,5/16"-18, GC

4шт.

52

GI-432

BRACKET

gas shock

4шт.
