(80.150.01) - TANKS AND SUPPORTS

Запчасти Case IH 3580 (80.150.01) - TANKS AND SUPPORTS (80) - CROP STORAGE/UNLOADING

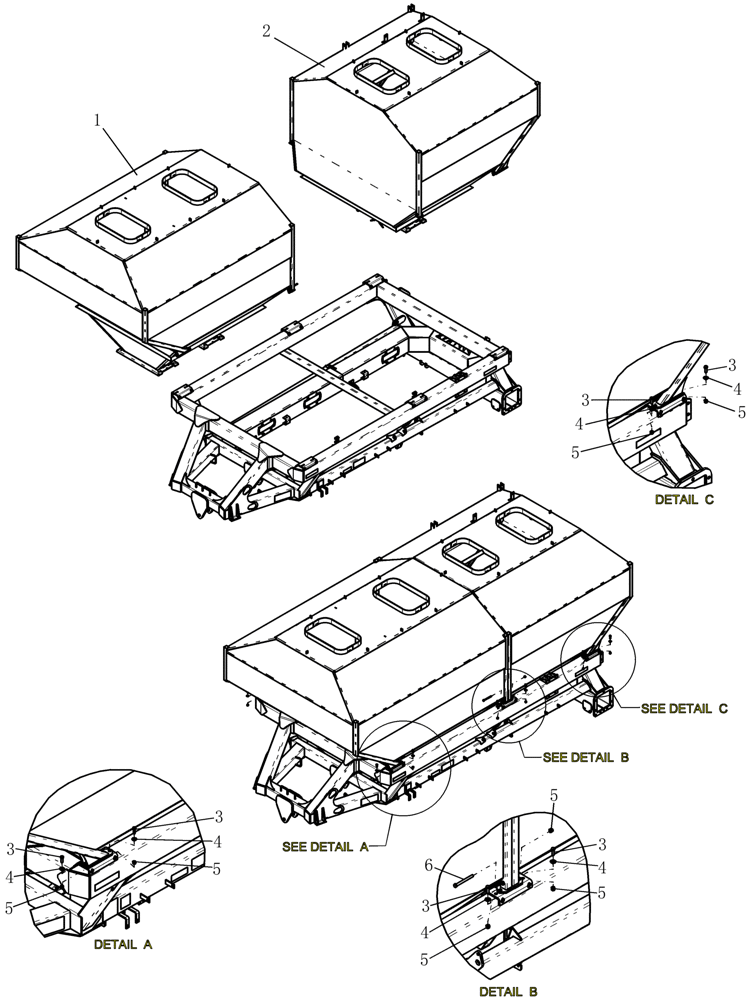

Схема запчастей Case IH 3580 - (80.150.01) - TANKS AND SUPPORTS (80) - CROP STORAGE/UNLOADING
4
5
4
3
3
2
3
4
4
1
5
6
5
5
5
4
3
4
5
3
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84213754

TANK

Front, 580 Bushel Cart

1шт.

2

84213756

TANK

Rear, 580 Bushel Cart

1шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

12шт.

4

87613260

WASHER,0.53" ID x 1.25" OD x 0.12" Thk

.531" id x 1.25" od x .134" thick

12шт.

5

86992215

LOCK NUT,1/2"-13, GC

14шт.

6

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

2шт.
