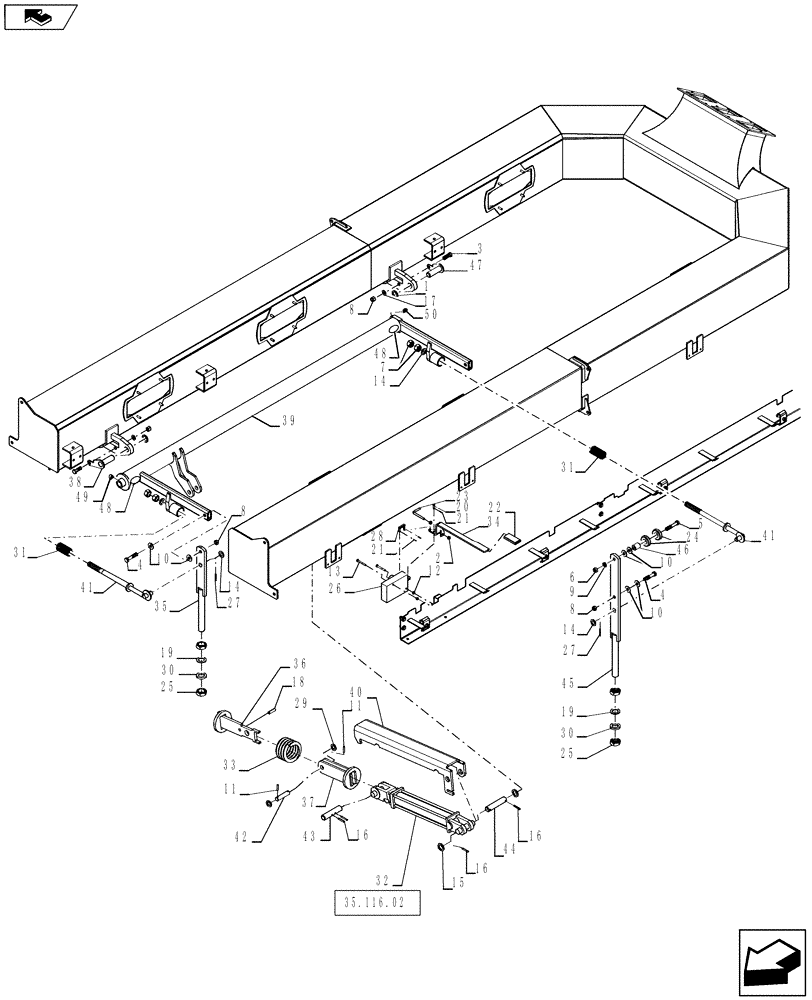

Запчасти Case IH 3580 (75.100.25) - CENTER MANIFOLD LIFT (75) - SOIL PREPARATION

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

6

280431

NUT,1/2"-13, G5

1шт.

7

280954

NUT,3/4"-10, G5

4шт.

8

86992215

LOCK NUT,1/2"-13, GC

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

6шт.

11

300868

ROLL PIN,6mm OD x 36mm L, Slotted

2шт.

13

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

14

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

4шт.

15

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

16

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

4шт.

17

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

18

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

1шт.

19

7141

WASHER

1 9/64" id x 1 3/4" 10ga

2шт.

20

8632

CLEVIS PIN

1/4" x 3/4" fl

1шт.

21

280236

COTTER PIN,1/16" x 1/2"

3шт.

22

9460

CAP

1/4" x 1 1/4" x 3"

1шт.

23

9534

SPECIAL BOLT

l-shaped lock up

1шт.

24

9828

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

25 mm x 52 mm x 15 mm wide

2шт.

25

9838

JAM NUT

jam 1 1/8"-7 G2

4шт.

26

87506228

HYDRAULIC VALVE

1 spool

1шт.

Includes 21346, 8632 and 432-48

1шт.

27

87020817

LOCK PIN,3/16" OD x 1-1/2" L, Slotted

2шт.

28

21346

HOOK

c shape

1шт.

29

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

2шт.

30

88695

LOCK WASHER,1 1/8"

2шт.

31

87506237

COMPRESSION SPRING

13/64" wire 1 15/32" od x 5 19/32" long

2шт.

32

87500855

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2" x 12" Monarch 2500 psi without pins

1шт.

Refer to 35.116.02

1шт.

33

87506225

COMPRESSION SPRING

5/8" Wire x 4.125" OD x 4.55" long

1шт.

34

GL-114

HANDLE

control valve

1шт.

35

GL-446

LINK

short center manifold lift tow behind

1шт.

36

GL-495

BASE

spring male

1шт.

37

GL-496

BASE

spring female

1шт.

38

GL-603

PIVOT PIN

center manifold lift - front

1шт.

39

84213613

ROCKSHAFT

Center Manifold

1шт.

40

GL-740

LOCK

center manifold lift

1шт.

41

GL-754

ROD

control, manifold lift

2шт.

42

GL-760

HEADLESS PIN

center manifold lift

1шт.

43

GL-761

HEADLESS PIN

manifold lift cylinder - rod end

1шт.

44

GL-762

HEADLESS PIN

manifold lift cylinder - clevis end

1шт.

45

84213619

LINK

Long, Center Manifold

1шт.

46

GL-795

BUSHING

manifold lift

1шт.

47

GL-103

PIVOT PIN

center manifold lift - rear

1шт.

48

6630

DECAL

2шт.

49

1299

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

1шт.

50

1298

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.
