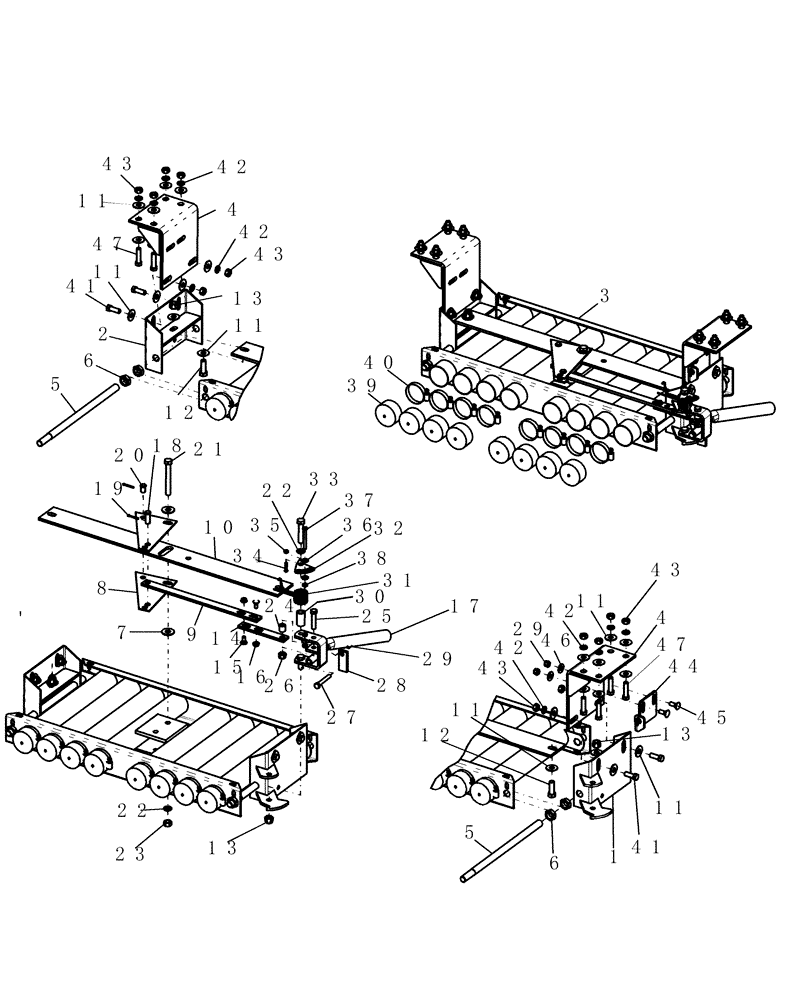

Запчасти Case IH 3580 (75.100.24) - INTERMEDIATE MANIFOLD (75) - SOIL PREPARATION

1

GM-324

BRACKET

mount, intermediate manifold

1шт.

2

GH-168

BRACKET

intermediate manifold mount RH

1шт.

3

GL-447

MANIFOLD

intermediate

1шт.

4

84213627

BRACKET

Intermediate Manifold

2шт.

5

9970

STUD

3/4"-10 x 15 1/2"

2шт.

6

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

8

GH-253

PLATE

actuator intermediate manifold

2шт.

9

GL-450

POWER ARM

long

1шт.

10

GL-449

PLATE

crossmember, intermediate manifold

1шт.

11

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

28шт.

12

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

13

86992215

LOCK NUT,1/2"-13, GC

3шт.

14

GH-251

ARM

actuator short

1шт.

15

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

2шт.

16

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

17

GM-326

HANDLE

intermediate manifold

1шт.

18

1841

CLEVIS PIN

1/2" x 1 1/4"

1шт.

19

80755

COTTER PIN,1/8" OD x 1" L

2шт.

20

GH-145

CLEVIS PIN

1/2" x 11/16"

1шт.

21

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

280431

NUT,1/2"-13, G5

1шт.

24

GH-250

SPACER

actuator arm

1шт.

25

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

26

280980

NUT,7/16"-14, GC

1шт.

27

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

28

GM-327

LATCH

intermediate manifold handle

1шт.

29

9637692

NUT,3/8"-16, GB

3шт.

30

GM-330

BUSHING

int manifold handle

1шт.

31

22593

TORSION SPRING

Left hand, .115'' wire x 1.465'' OD, Stainless steel

1шт.

32

GM-328

PIVOT

arm assembly

1шт.

33

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

34

425092A1

SCREW,Pan Hd, #10-24 x 1", Sq Slot, Stainless

1шт.

35

9448

NUT

#10-24 stainless steel

1шт.

36

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

37

9909

BOLT

1/4" x 2 1/2" GR5 all thread

1шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

39

4731

CAP

vinyl 2 1/2" id x 1" long

8шт.

40

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

8шт.

41

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

4шт.

42

81547

LOCK WASHER,7/16"

12шт.

43

280717

NUT,7/16"-14, G5

12шт.

44

GM-321

BRACKET

mount ball valve

1шт.

45

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

47

84192879

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Hex, 7/16"-14 x 1 3/4", G5

8шт.
