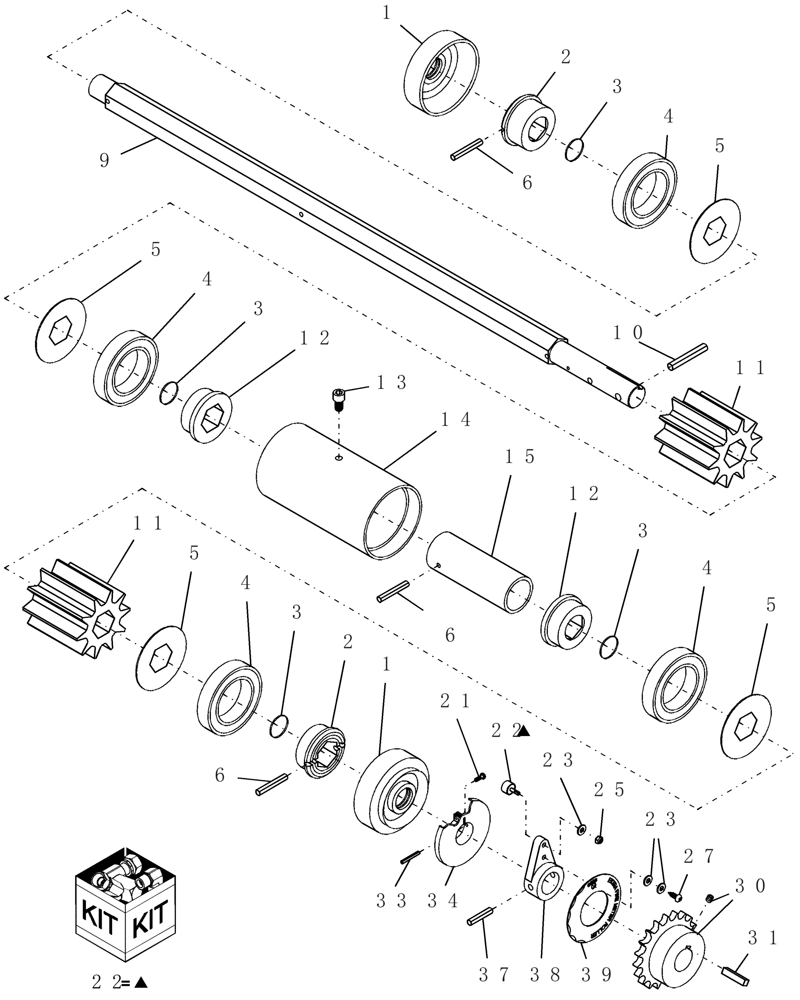

Запчасти Case IH 3580 (75.100.20) - METER ROLLERS (75) - SOIL PREPARATION

1

CA-133

SEAL

meter roller ends

2шт.

2

425281A1

BUSHING

puck, meter roller outer

2шт.

3

51200142

O-RING,2.375" ID x 2.5" OD x 0.63"

1 1/8" id x 1 1/4" od x 1/16" thick

4шт.

4

51200149

BEARING

6010LLC/2AQT with Steel Seals (NTN)

1шт.

5

GH-891

BEARING COVER

bearing - steel

4шт.

6

87578

LOCK PIN,3/16" x 1 3/4", Slotted

3шт.

9

GL-562

SHAFT

meter roller - 2 to 8 run

1шт.

10

70921559

ROLL PIN,7.94mm OD x 41.27mm L

1шт.

Variable Drive Only

1шт.

11

9825

ROLLER

meter section, xfine low clearance

1шт.

11

7245

ROLLER

meter section, fine

1шт.

11

7246

ROLLER

meter section, coarse

1шт.

11

51200058

ROLLER

meter section, x-coarse

1шт.

12

8826

RUBBER PAD

meter roller inner bushing plastic

2шт.

13

7247

HEX SOC SCREW

hex socket nylon 5/16" x 1/2" hx-skt

1шт.

14

GL-580

SPACER

outer meter roller blanks center of 8 run rlr (2.5" long)

1шт.

Includes 7247

1шт.

14

GL-581

SPACER

outer meter roller blanks 1 run (5.649" long)

1шт.

Includes 7247

1шт.

14

GL-582

SPACER

outer meter roller blanks 2 runs (8.797" long)

1шт.

Includes 7247

1шт.

14

GL-583

SPACER

outer meter roller blanks 3 runs (11.945" long)

1шт.

Includes 7247

1шт.

14

GL-584

SPACER

outer meter roller blanks 4 runs (15.094" long)

1шт.

Includes 7247

1шт.

14

GL-585

SPACER

outer meter roller blanks 5 runs (18.242" long)

1шт.

Includes 7247

1шт.

14

GL-586

SPACER

outer meter roller blanks 6 runs (21.391" long)

1шт.

Includes 7247

1шт.

15

GL-570

SPACER

inner meter roller blanks center of 8 run rlr (3/4" long)

1шт.

15

GL-571

SPACER

inner meter roller blanks 1 run (3.899" long)

1шт.

15

GL-572

SPACER

inner meter roller blanks 2 runs (7.047" long)

1шт.

15

GL-573

SPACER

inner meter roller blanks 3 runs (10.195" long)

1шт.

15

GL-574

SPACER

inner meter roller blanks 4 runs (13.343" long)

1шт.

15

GL-575

SPACER

inner meter roller blanks 5 runs (16.492" long)

1шт.

15

GL-576

SPACER

inner meter roller blanks 6 runs (19.64" long)

1шт.

21

9722

SCREW,#6 - 32 x 0.50", SST

mch #6-32 x 1/2" rh pi ss

1шт.

22

6893K

KIT

cam follower stud

1шт.

Includes 6896 and 7526

1шт.

23

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

3шт.

25

20332

LOCK NUT,#10-32, GB

1шт.

27

9773

SCREW,#12 x 0.50"

sms #12 x 1/2" plt rh sq

1шт.

30

GL-506

SPROCKET

meter roller drive

1шт.

Mechanical drive only

1шт.

31

GL-507

KEY

1/4" sq x 1 1/4" long

1шт.

Mechanical drive only

1шт.

33

425294A1

ROLL PIN

1/8" x 1 1/4"

1шт.

34

87506452

ACTUATOR

meter roller shaft

1шт.

37

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

38

CA-123

AGITATOR

cam

1шт.

39

9826

DISC

meter roller id x-fine low clearance

1шт.

39

412783A1

DISC

meter roller id fine

1шт.

39

8096

DISC

meter roller id coarse

1шт.

39

22435

DISC

meter roller id x-coarse

1шт.
