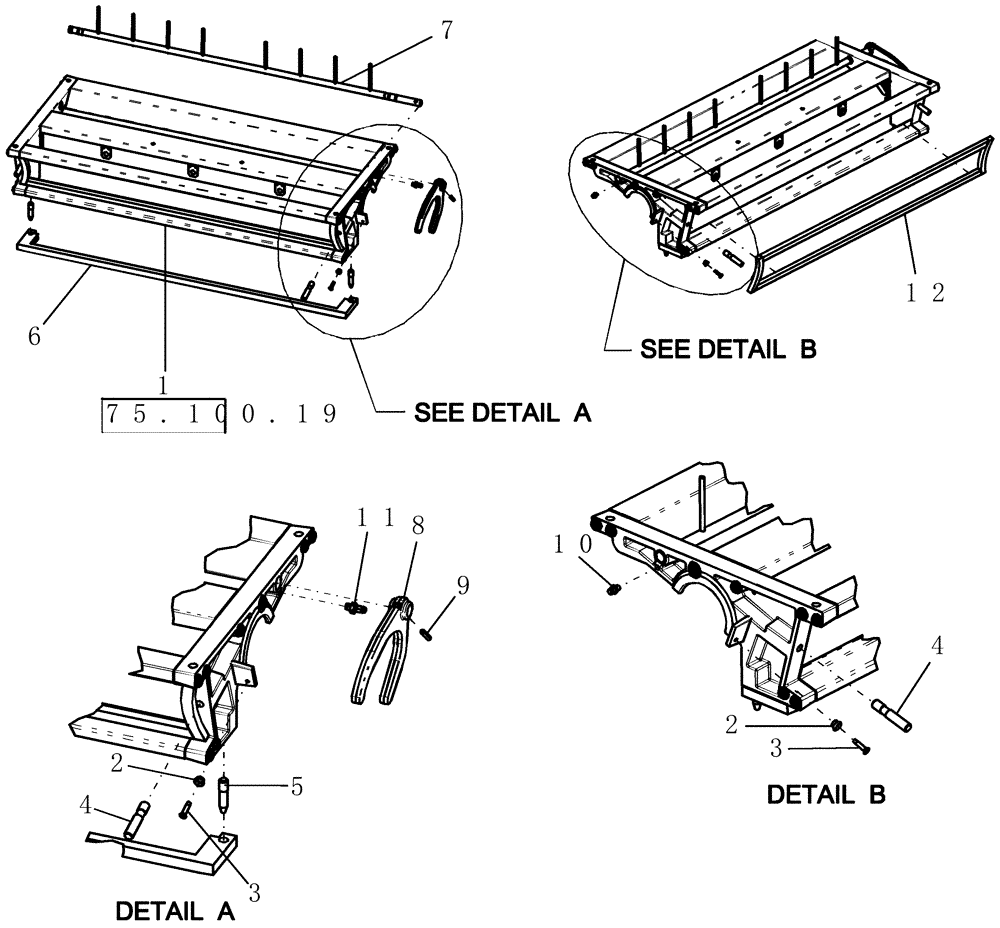

Запчасти Case IH 3580 (75.100.16) - METER DRIVE BOX ASSEMBLY (75) - SOIL PREPARATION

1

NSS

NOT SOLD SEPARAT

1шт.

See Figure 75.100.19

1шт.

2

8191

LATCH

button keeper

2шт.

3

8285

SELF-TAP SCREW

#8-32 x 3/4" fh d pi

2шт.

4

22893

STUD

3/8"-16 x 2", G5 - stainless steel

2шт.

5

22894

STUD

3/8"-16 x 1 1/2", G5 - stainless steel

2шт.

6

CA-228

SEAL

front half - 2 lip

1шт.

7a

87423141

SHAFT

agitator 28" meter box

1шт.

7b

7189

ROLL PIN

3/16" x 3"

8шт.

8

GI-522

CAM

follower, agitator

1шт.

9

118827

PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

12

425462A1

FOAM

sponge 1/2" w x 3/8" thick

66шт.
