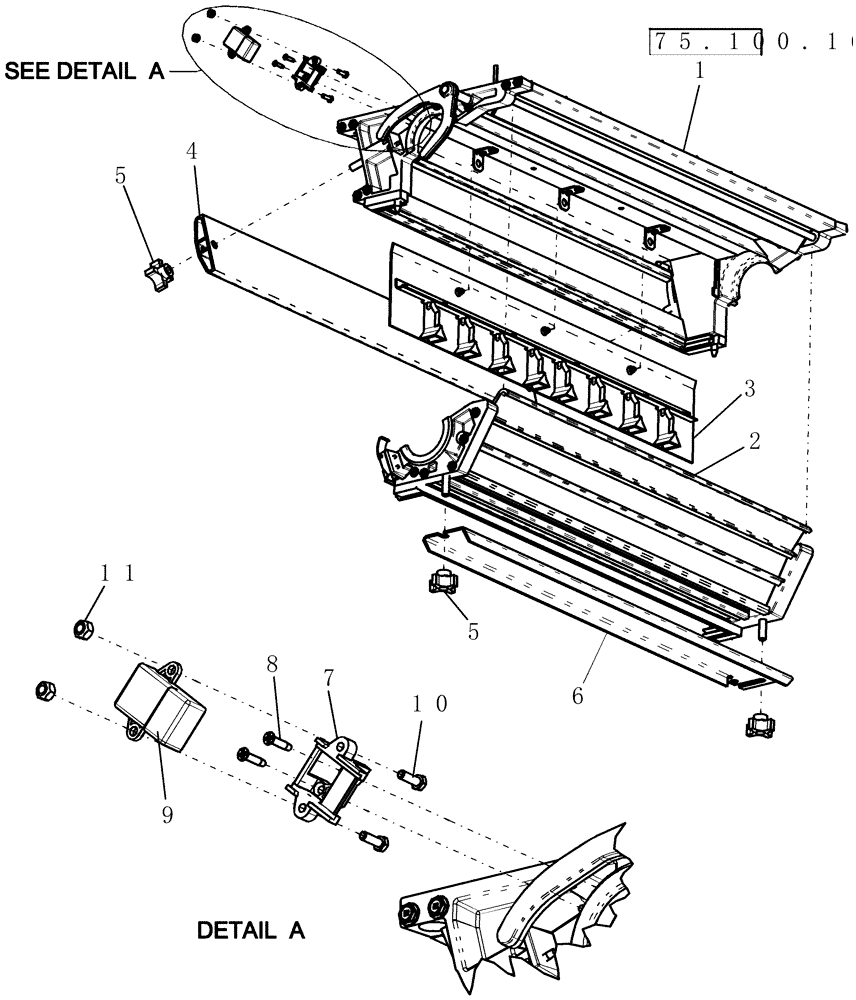

Запчасти Case IH 3580 (75.100.15) - METER DRIVE BOX 28" (75) - SOIL PREPARATION

1

GR-115A

BOX

28" Meter Assembly, Top Front

1шт.

See Figure 75.100.16

1шт.

2

GL-402AV2

BOTTOM

assembly, 28" meter box

1шт.

3

GL-403A

BAFFLE

panel assembly 28" meter box

1шт.

4

9327

COVER

meter box inspection plastic

1шт.

5

6909

KNOB

plastic 4-prong 3/8" thru hole brass insert

4шт.

6

GI-521

PANEL

drain, front 28" meter box

1шт.

7

22334

BRACKET

shaft sensor mount LH

1шт.

8

8285

SELF-TAP SCREW

#8-32 x 3/4" fh d pi

2шт.

9

13919

SENSOR

shaft

1шт.

10

9809

SCREW,Hex, #10 - 32 x 5/8", SST

mch #10-32 x 5/8" hh ss

2шт.

11

9148

LOCK NUT

#10-32, stainless steel

2шт.

12

GF-100.04

DECAL

inspection port

1шт.

Not Shown

1шт.
