Запчасти Case IH 3580 (75.100.10) - VARIABLE DRIVE COMPONENTS (75) - SOIL PREPARATION

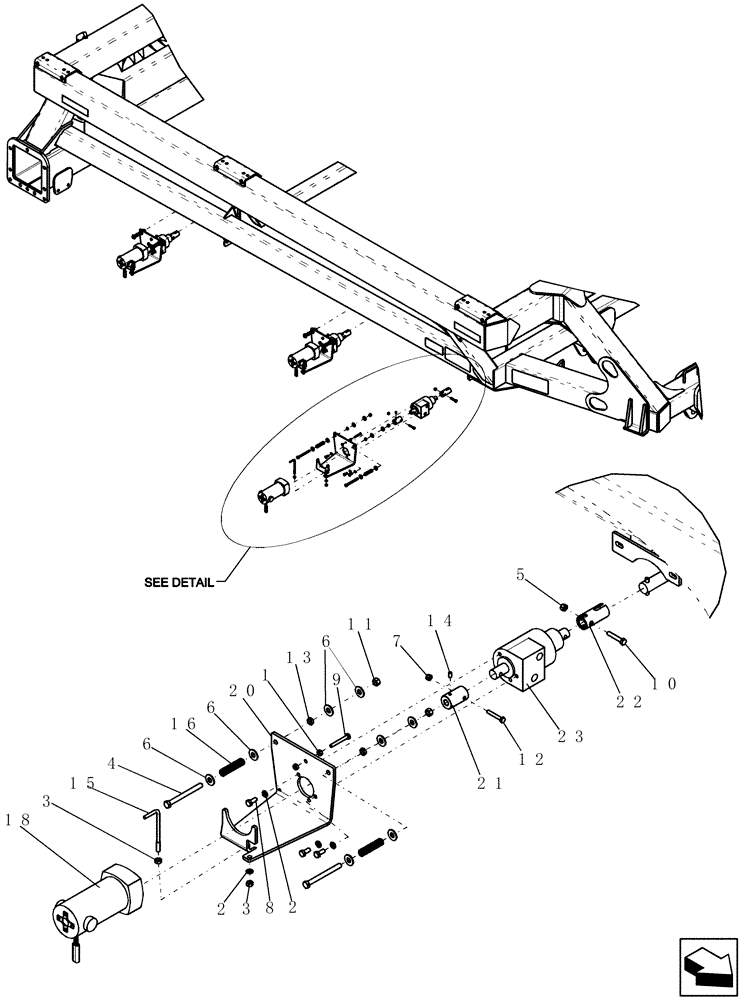

Схема запчастей Case IH 3580 - (75.100.10) - VARIABLE DRIVE COMPONENTS (75) - SOIL PREPARATION
6
1
14
21
12
20
13
5
4
8
22
18
6
6
10
9
3
23
2
3
11
15
16
2
7

Артикул

Название

Примечание

Количество

1

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

2

80681

LOCK WASHER,5/16"

12шт.

3

9635082

NUT,5/16" - 18, Gr 5

6шт.

4

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

6шт.

5

280736

NUT,5/16"-18, GC

3шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

24шт.

7

280129

NUT,1/4"-20

3шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

9шт.

11

9628503

NUT,3/8"-16, G5

6шт.

12

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

3шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

14

6986

SET SCREW

1/4"-20 x 1/2"

3шт.

15

9456

BOLT

5/16"-18 x 4 1/4"l x 1 35/64"d 1 9/16" leg

3шт.

16

87506229

COMPRESSION SPRING

1/16" Wire x 5/8" od x 2 3/4" long

6шт.

18

87445140

ELECTRIC MOTOR

121rpm @12v 1/15hp

1шт.

87445140R

REMAN-ELECTRIC MOTOR

3580 (3/10-)

1шт.

87445140C

CORE-ELECTRIC MOTOR

Return Number

1шт.

18

87504964

SEAL KIT

Seal Output Shaft

1шт.

18

GM-399K

KIT

Motor Bearing Replacement

1шт.

20

84249762

BRACKET

VR Drive Mount

3шт.

21

GL-484

COUPLING

3шт.

22

GM-350

COUPLING,23.11mm ID x 31.8mm OD x 70.6mm L

tg to meter roller

3шт.

23

GM-363

HYDRAULIC MOTOR

torque generator 2 3/16" 3/rev

3шт.

Выбрано товаров: 23
