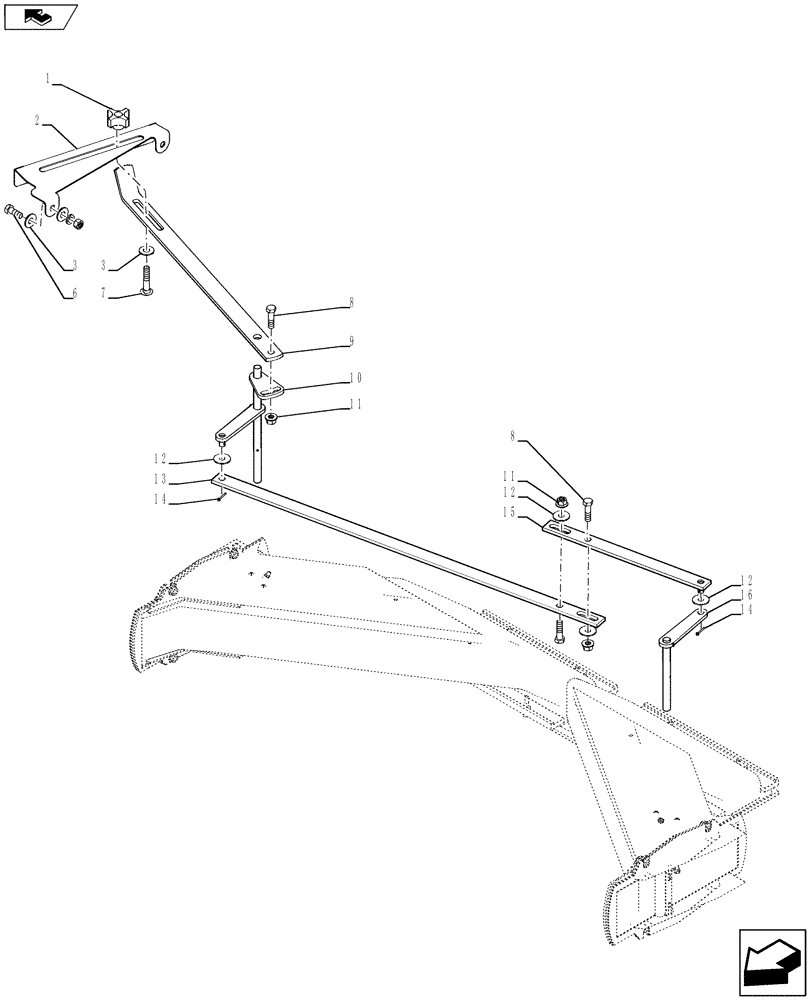

Запчасти Case IH 3580 (75.100.05[02]) - PLENUM LINKAGE (SEPT 19, 2011 - CURRENT) (75) - SOIL PREPARATION

1

6909

KNOB

1шт.

2

84466727

ADJUSTING PLATE

Incl 17

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

5

2335

NUT,3/8"-16, G5

2шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

8

280206

BOLT,Hex, 3/8" - 16 x 1 3/8", Gr 5

3шт.

9

84483293

LINKAGE

Incl 18

1шт.

10

84466095

CONTROL LEVER

1шт.

11

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

12

86625240

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

4шт.

13

84478428

LINKAGE

1шт.

14

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

15

84483289

LINKAGE

1шт.

16

84466677

CONTROL LEVER

1шт.

17

84483242

DECAL

Air Damper Control

1шт.

18

GL-700.24

DECAL

Control Pointer

1шт.
