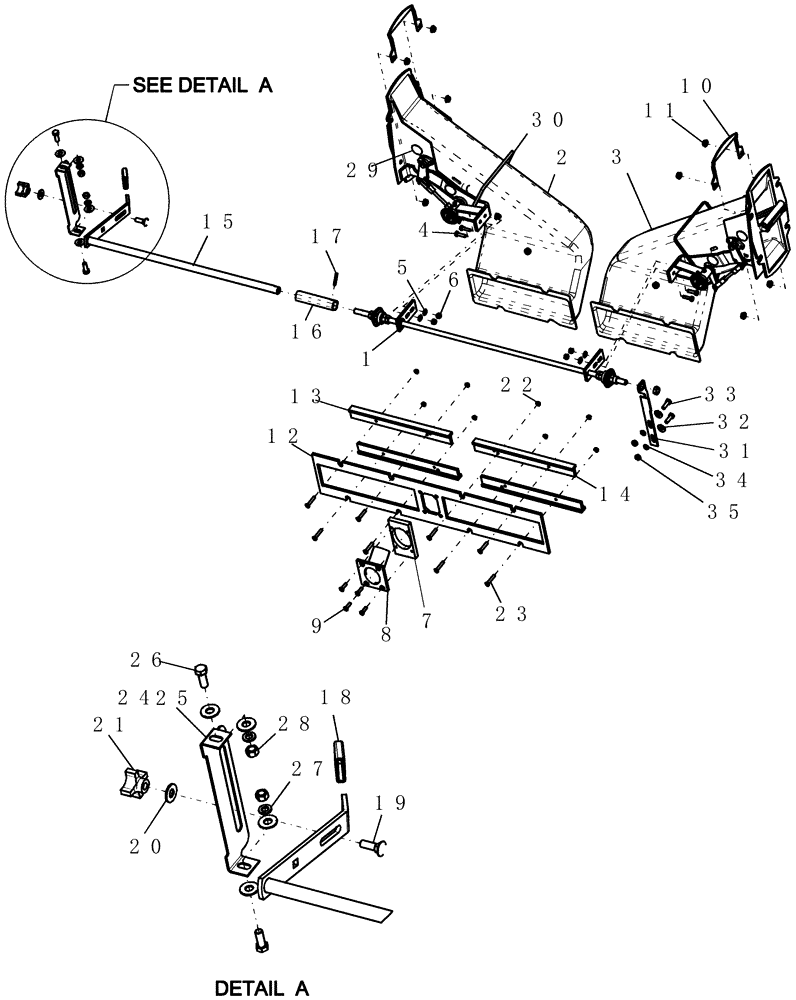

Запчасти Case IH 3580 (75.100.05[01]) - PLENUM, AIR COLLECTOR (75) - SOIL PREPARATION

1

GL-778A

DAMPER

drive assembly

1шт.

2

GL-774A

CHAMBER

assembly, air plenum right

1шт.

3

GL-776A

CHAMBER

assembly, air plenum left

1шт.

4

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

6

280129

NUT,1/4"-20

4шт.

7

GL-252

PLATE

air tube clamp sub hopper

1шт.

8

GL-251

AIR INTAKE TUBE,4.062" L

air sub hopper

1шт.

9

9982

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1"

hex socket 1/4" x 20" x 1" ss fh

4шт.

10

GM-361

BRACKET

Air Plenum

2шт.

11

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

12

22328

SEAL

plenum mount plate

1шт.

13

84173601

STRAP

hold down RH

2шт.

14

84173602

STRAP

hold down LH

2шт.

15

84213624

HANDLE

Control, Air Damper

1шт.

16

GL-718

COUPLING

damper shaft

1шт.

17

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

18

51200046

CAP

plastic rct 1/4" x 1 1/4" x 2" black

1шт.

19

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

21

6909

KNOB

plastic 4-prong 3/8" thru hole brass insert

1шт.

22

22444

SEALING WASHER

rolled nyltite sealing

8шт.

23

161-116

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1 1/2", SST

8шт.

24

84268234

PLATE

Air Control Adjustment

1шт.

25

84268235

DECAL

Damper Control

1шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

28

9628503

NUT,3/8"-16, G5

2шт.

29

6567

DECAL

grease 200 hours

4шт.

30

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

4шт.

31

GM-422

BRACKET

shaft retainer

1шт.

32

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

33

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

34

80681

LOCK WASHER,5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

2шт.
