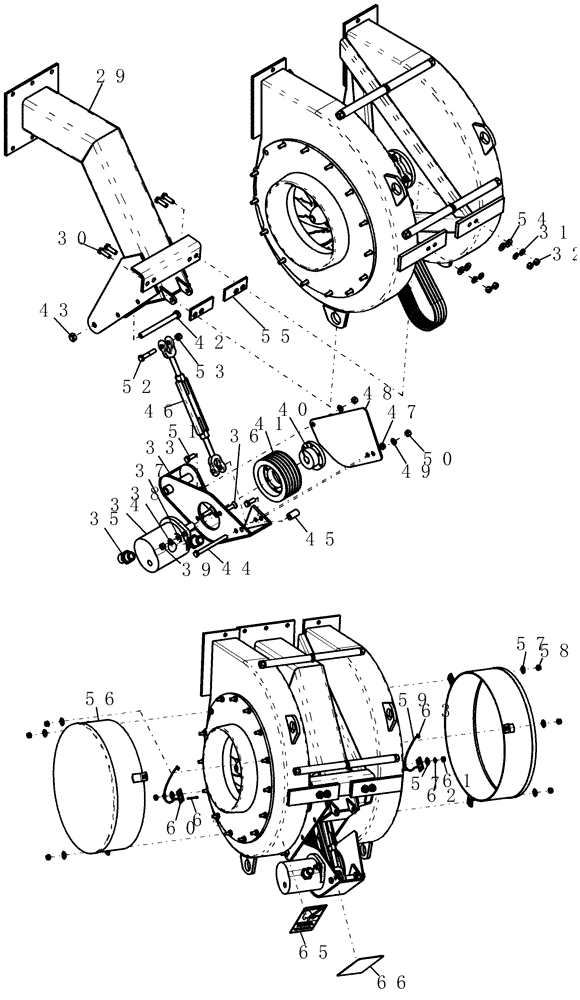

Запчасти Case IH 3580 (75.100.04[02]) - DUAL FAN ASSEMBLY - MOTOR (75) - SOIL PREPARATION

29

GL-840

SUPPORT

arm, dual fan

1шт.

30

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

31

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

32

9628503

NUT,3/8"-16, G5

4шт.

33

GL-841

BRACKET

mount, housing, motor - dual fan

1шт.

34

87488819

HYDRAULIC MOTOR

Rexroth 19cc Ultra

1шт.

34

87488819R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

1шт.

34

87488819C

CORE-MOTOR HYDRAULIC

Return Number, HYDRAULIC MOTOR

1шт.

34

84217322

SEAL KIT

1шт.

35

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

36

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

2шт.

37

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

39

9628503

NUT,3/8"-16, G5

2шт.

40

8565

BUSHING

3/4" bore

1шт.

41

9938

SHEAVE

5" od - 3v 5 groove

1шт.

42

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

43

86992215

LOCK NUT,1/2"-13, GC

1шт.

44

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

1шт.

45

GL-847

SPACER

dual fan

1шт.

46

9940

TURNBUCKLE

assembly

1шт.

47

88902

NUT,3/8"-16

1шт.

48

GL-849

SHIELD

motor mount - dual fan

1шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

50

9628503

NUT,3/8"-16, G5

2шт.

51

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

52

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

53

9637692

NUT,3/8"-16, GB

1шт.

54

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

55

GL-855

SPACER

dual fan

2шт.

56

GD-770

SCREEN

fan inlet

2шт.

57

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

12шт.

58

280736

NUT,5/16"-18, GC

6шт.

59

84300012

CHAIN

No. 1 Wire, 229 mm Long

2шт.

60

GH-530

BRACKET

mount, fan shield chain

2шт.

61

9635082

NUT,5/16" - 18, Gr 5

2шт.

62

80681

LOCK WASHER,5/16"

2шт.

63

6053

HOOK

#6

2шт.

64

80755

COTTER PIN,1/8" OD x 1" L

2шт.

65

GD-500.73

DANGER DECAL

fan

1шт.

66

22407

DECAL

fan belt tension adjustment

1шт.
