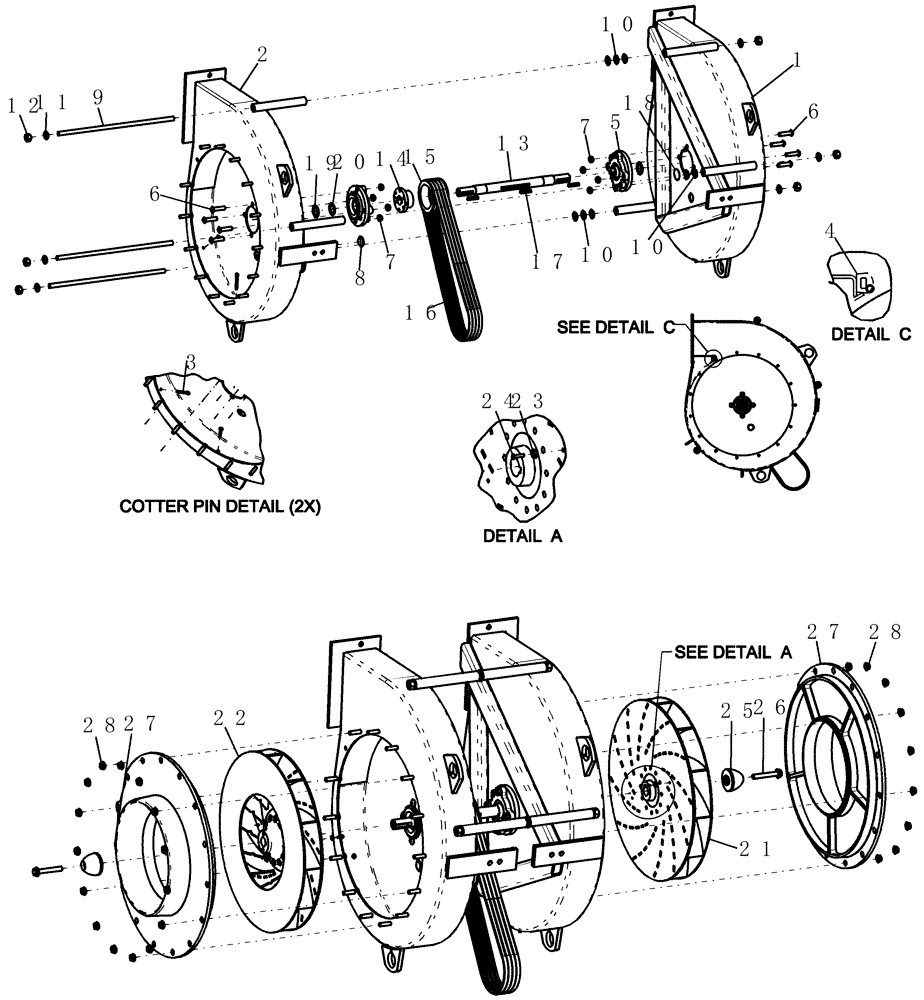

Запчасти Case IH 3580 (75.100.04[01]) - DUAL FAN ASSEMBLY (75) - SOIL PREPARATION

1

GL-842

HOUSING

dual fan - cws rotation

1шт.

2

GL-843

HOUSING

dual fan - ccw rotation

1шт.

3

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

4шт.

4

84300013

WEATHERSTRIP

Rubber, 83 mm Long

2шт.

5

GD-177A

FLANGED BEARING

c/w 4 hole flange

2шт.

6

5315

SCREW,3/8" - 16 x 1-1/2"

hex socket 3/8"-16 x 1 1/2" blk bh

8шт.

7

88902

NUT,3/8"-16

8шт.

8

412913A1

PLASTIC PLUG

7/8" hole

1шт.

9

GL-846

THREADED ROD

1/2"-13 x 14 1/2"

3шт.

10

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

12

280431

NUT,1/2"-13, G5

6шт.

13

GL-845

SHAFT

fan impeller - dual fan

1шт.

14

4361

BUSHING

sh 1" bore

1шт.

15

9939

SHEAVE

3 41/64" od - 3v 4 groove

1шт.

16

3290

V-BELT

3V x 425

4шт.

17

GL-507

KEY

1/4" sq x 1 1/4" long

3шт.

18

6630

DECAL

grease 100 hours

2шт.

19

21352

BUSHING

7/8" id 1 3/8" 14GA

2шт.

20

21427

BUSHING

7/8" id 1 3/8" 18GA

1шт.

21

GL-850A

IMPELLER

assembly, dual fan - clockwise rotation

1шт.

22

GL-844A

IMPELLER

assembly, dual fan - counter clockwise rotation

1шт.

23

87653

NUT,#8-32

2шт.

24

425028A1

RIVET

pop 1/8" x 1/2"

2шт.

25

GE-396

HUB

spinner, fan

2шт.

26

5110

BOLT

fg 3/8"-16 x 2 1/2" GR5 sfl

2шт.

27

87506206

FAN

inlet casting

2шт.

28

86521605

FLANGE NUT,5/16"-18, Cl 5

30шт.
