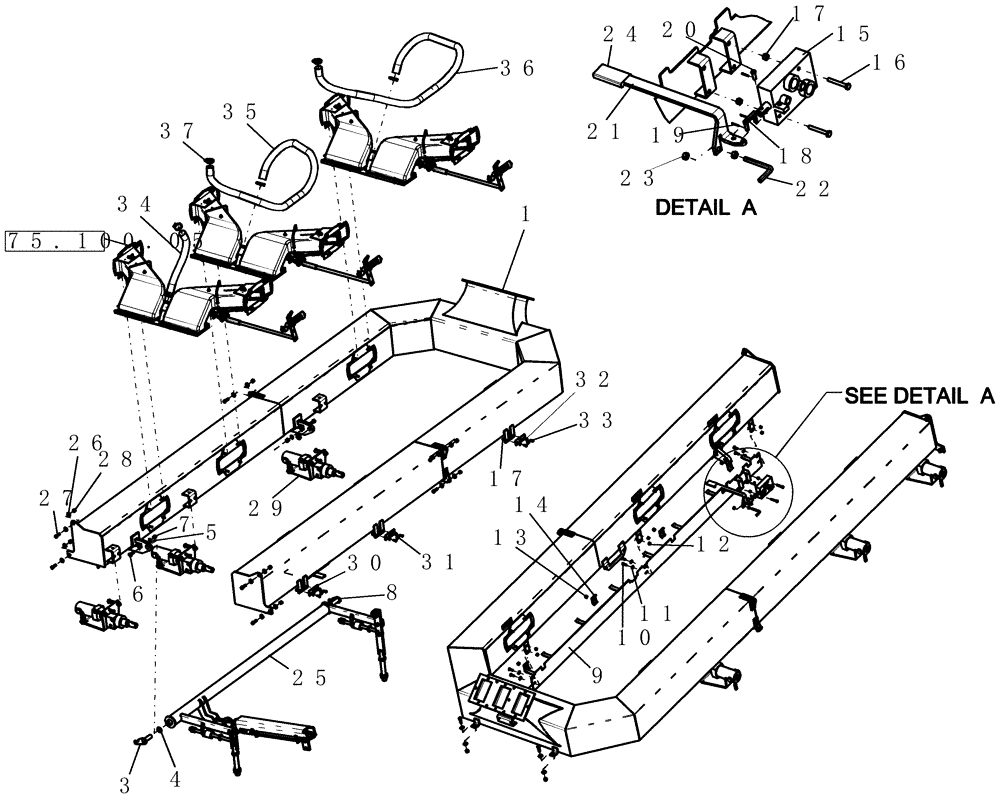

Запчасти Case IH 3580 (75.100.01) - AIR SYSTEM CART (75) - SOIL PREPARATION

1

84213594

FRAME

Air Tube

1шт.

2

84213601

3шт.

3

GL-603

PIVOT PIN

center manifold lift - front

1шт.

4

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

5

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

6

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

7

86992215

LOCK NUT,1/2"-13, GC

2шт.

8

GL-103

PIVOT PIN

center manifold lift - rear

1шт.

9

84466864

PANEL

Hose Collector

1шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

12

280736

NUT,5/16"-18, GC

6шт.

13

9637692

NUT,3/8"-16, GB

4шт.

14

CC-105

HOSE CLAMP

for 2 hoses

4шт.

15

87506228

HYDRAULIC VALVE

1 spool

1шт.

16

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

17

280129

NUT,1/4"-20

8шт.

18

21346

HOOK

c shape

1шт.

19

280236

COTTER PIN,1/16" x 1/2"

3шт.

20

8632

CLEVIS PIN

1/4" x 3/4" fl

1шт.

21

GL-114

HANDLE

control valve

1шт.

22

9534

SPECIAL BOLT

l-shaped lock up

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

2шт.

24

9460

CAP

1/4" x 1 1/4" x 3"

1шт.

25

84213613

ROCKSHAFT

Center Manifold

1шт.

26

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

20шт.

27

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

10шт.

28

280980

NUT,7/16"-14, GC

10шт.

29

NSS

NOT SOLD SEPARAT

1шт.

Refer to 75.100.17

1шт.

30

GL-905

PLATE

AIR CONTROL HANDLE BEARING

3шт.

31

51200077

BUSHING

flange, nyliner 13/16" x 75 x .14 split

3шт.

32

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

33

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

34

23235

HOSE

1 3/4" x 50' flexthane black

1шт.

Cut 1' 6 1/2" from bulk hose

1шт.

35

23235

HOSE

1 3/4" x 50' flexthane black

1шт.

Cut 5' 10 13/16" from bulk roll

1шт.

36

23235

HOSE

1 3/4" x 50' flexthane black

1шт.

Cut 7' from bulk roll

1шт.

37

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

6шт.
