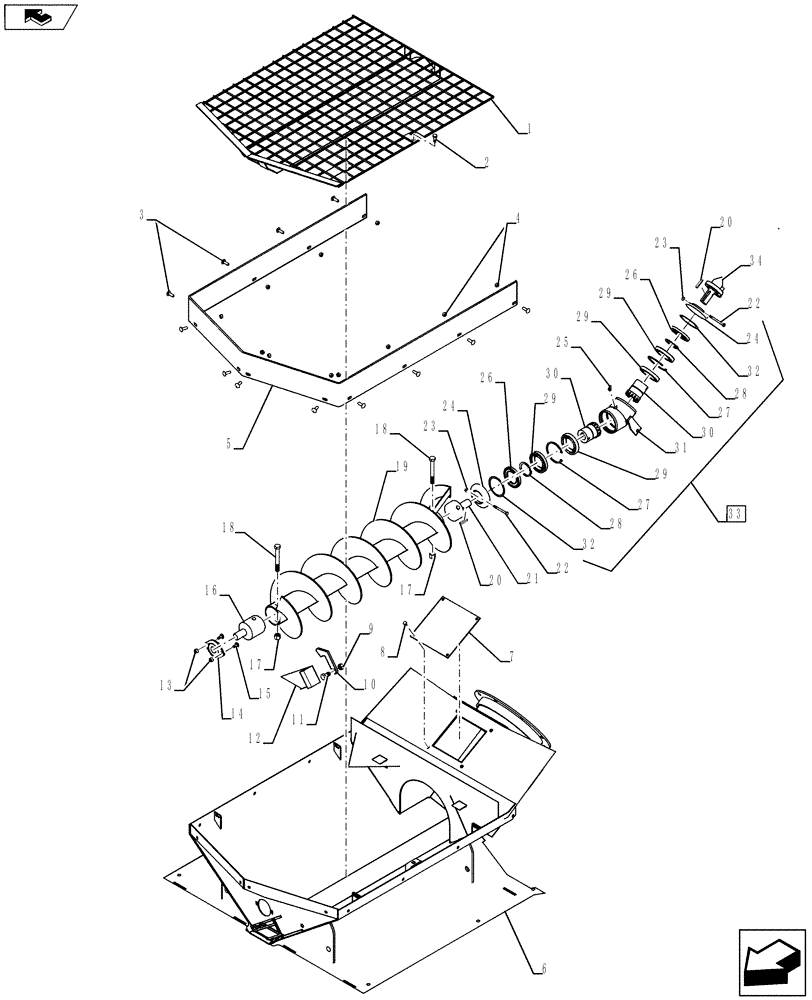

Запчасти Case IH 3580 (58.120.09) - DELUXE AUGER HOPPER ASSEMBLY 2012 (58) - ATTACHMENTS/HEADERS

1

84383978

GRATE

1шт.

2

81821889

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8"-16 X 7/8" Full Thread GR5, ZND

1шт.

3

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

4

9635082

NUT,5/16" - 18, Gr 5

12шт.

5

84383971

SHEET

1шт.

6

84384044

HOPPER

1шт.

7

47782500

COVER

Access

1шт.

8

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

4шт.

9

1539

NUT,1/2"-13, G5

1шт.

10

84384056

LOCK

1шт.

11

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

12

84424462

COVER

1шт.

13

86629544

NUT,5/16” – 18, GR B

2шт.

14

9549

FLANGED BEARING

1шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

16

84539120

SHAFT

1шт.

17

87333768

NUT,1/2" - 20

1/2"-20 GR C, ZND

4шт.

18

88966

BOLT,Hex, 1/2" - 20 x 4", Gr 8

1/2"-20 X 4.00" GR8, ZND

2шт.

19

84384066

AUGER FLIGHT

1шт.

20

84424488

KEY

2шт.

21

84527686

GUIDE

1шт.

22

281069

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 8

2шт.

23

20356

NUT,1/4"-20, GB

2шт.

24

84476580

SHIELD

2шт.

25

80721

LUBE NIPPLE,1/4"-28 x 45 Degree

45 Degree, 1/4"-28 SAE-LT

1шт.

26

84490921

SEAL,50mm ID x 80mm OD x 8mm Thk

2шт.

27

300633

SNAP RING,M80, Internal

2шт.

28

370008

SNAP RING,M50, Ext

2шт.

29

84470955

BALL BEARING

4шт.

30

NSS

NOT SOLD SEPARAT

Included In 33

2шт.

31

84552584

HOUSING

1шт.

32

84491593

SHIM,69mm ID x 79.7mm OD x 0.3mm Thk

69mm X 79.7mm X 0.5mm Hard Steel Plain

2шт.

32

84491594

SHIM,69mm ID x 79.7mm OD x 0.4mm Thk

69mm X 79.7mm X 0.4mm Hard Steel Plain

2шт.

32

84491595

SHIM,69mm ID x 79.7mm OD x 0.5mm Thk

69mm X 79.7mm X 0.3mm Hard Steel Plain

6шт.

33

84497405

GEARBOX

Incl 24 - 32

1шт.

34

84424480

DRIVE

1шт.
