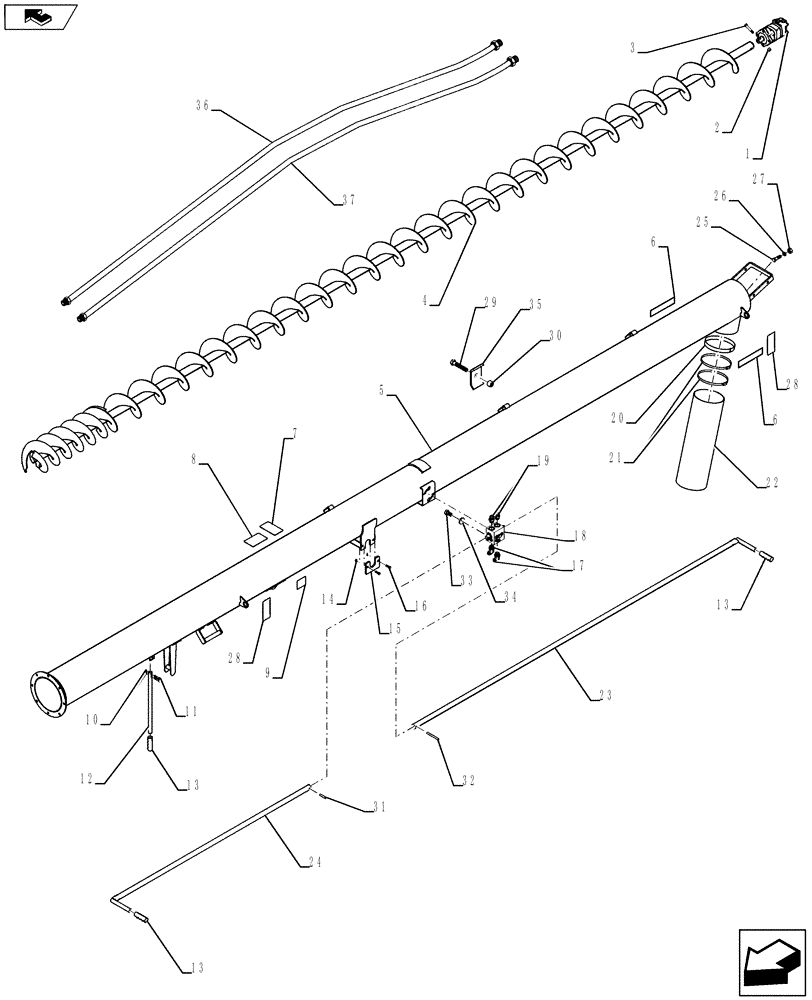

Запчасти Case IH 3580 (58.120.08) - DELUXE AUGER TUBE ASSEMBLY 2012 - CURRENT (58) - ATTACHMENTS/HEADERS

1

84583852

HYDRAULIC MOTOR

1шт.

1a

47430062

SEAL KIT

1шт.

2

87333768

NUT,1/2" - 20

1/2"-20 GR C, ZND

1шт.

3

280561

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

1шт.

4

84384047

AUGER FLIGHT

1шт.

5

84527813

CHUTE

1шт.

6

22903

DECAL

Retroflective Amber

2шт.

7

GL-700.43

DECAL

Attention When Operating Auger

1шт.

8

GD-500.80

DECAL

Danger Auger Flighting

1шт.

9

GD-500.06

DECAL

Attention Auger

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

12

84589123

ROD

1шт.

13

23781

GRIP

3шт.

14

9637692

NUT,3/8"-16, GB

4шт.

15

GL-657

RETAINER

2шт.

16

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

17

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

2шт.

18

84583850

HYDRAULIC VALVE

1шт.

19

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

2шт.

20

84300017

ADHESIVE STRIP

1шт.

21

76088794

HOSE CLAMP,8.12" - 9"

Type F

2шт.

22

84300016

HOSE,890.00 mm

1шт.

23

84424482

CONTROL

1шт.

24

84589126

CONTROL

1шт.

25

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

27

280431

NUT,1/2"-13, G5

4шт.

28

87503917

DECAL

Auger Direction

2шт.

29

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

30

88902

NUT,3/8"-16

2шт.

31

6248

LOCK PIN,5/16" x 1 1/2", Slotted

1шт.

32

8559

PIN,5/16" x 3"

Slotted, 5/16" X 3.00" ZND

1шт.

33

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

34

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

35

86983984

CLAMP

Hose Clamp For Two Hoses

2шт.

36

84583859

HYDRAULIC HOSE

19mm X 3320mm

1шт.

37

84583863

HYDRAULIC HOSE

19mm X 3400mm

1шт.
