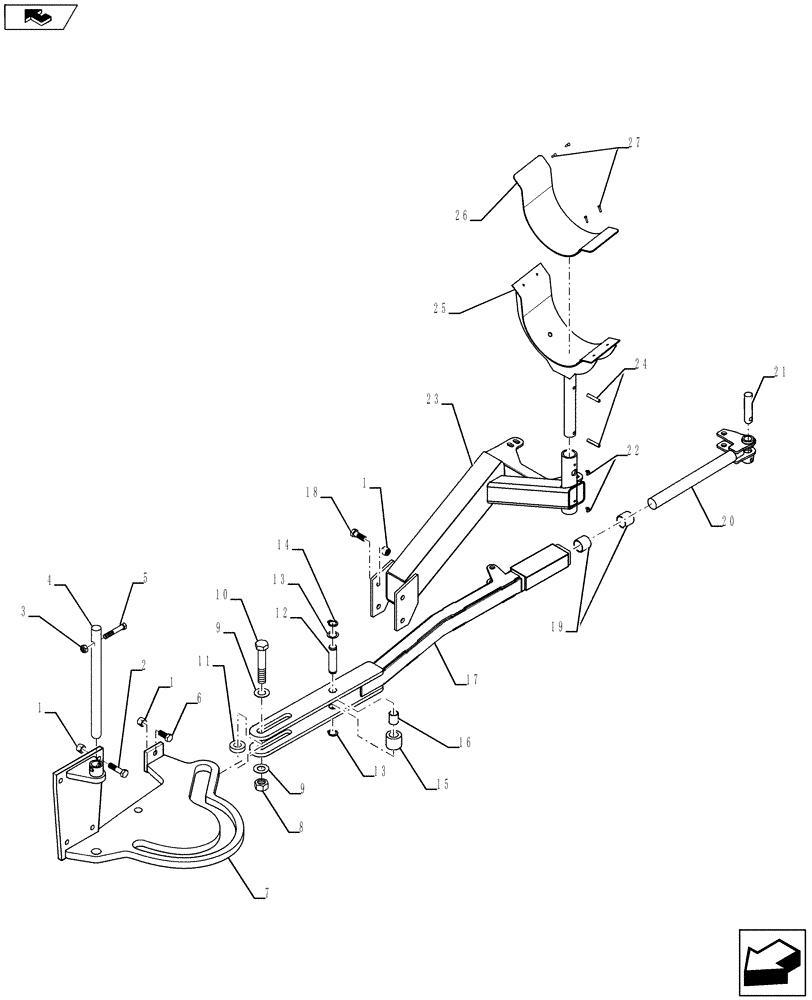

Запчасти Case IH 3580 (58.120.06[02]) - DELUXE AUGER MOUNT 2012 - CURRENT (58) - ATTACHMENTS/HEADERS

1

19670

NUT,5/8"-11, GB

9шт.

2

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

4шт.

3

6035

LOCK NUT,Hex, 9/16" - 12, Gr 8

1шт.

4

84557601

PIN,31.75mm OD x 442mm L

1шт.

5

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

1шт.

6

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

7

84383983

MOUNT

1шт.

8

230-41116

NUT,1"-8, GA

1шт.

9

87613202

WASHER,1.03" ID x 2" OD x 0.06" Thk

1шт.

10

87315232

BOLT

1шт.

11

84534942

WASHER,25.8mm ID x 51mm OD x 14mm Thk

1шт.

12

87418581

PIN,25.4mm OD x 104mm L

1шт.

13

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

2шт.

14

6392

SNAP RING,#98, Ext

1шт.

15

84573233

BUSHING

Includes Ref 16

1шт.

16

6635

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Included In Ref 15

1шт.

17

84573225

LINK

1шт.

18

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

19

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

2шт.

20

84576080

LINK

1шт.

21

84418232

PIN

1шт.

22

80718

LUBE NIPPLE,1/4"-28 x 90 Degree

2шт.

23

84418253

ARM

1шт.

24

22346

LOCK PIN,3/8" x 2", Slotted

2шт.

25

84490489

SUPPORT

1шт.

26

9720

WEAR STRIP

1шт.

27

8670

RIVET,Pop, 3/16" OD x 3/4" L

4шт.
