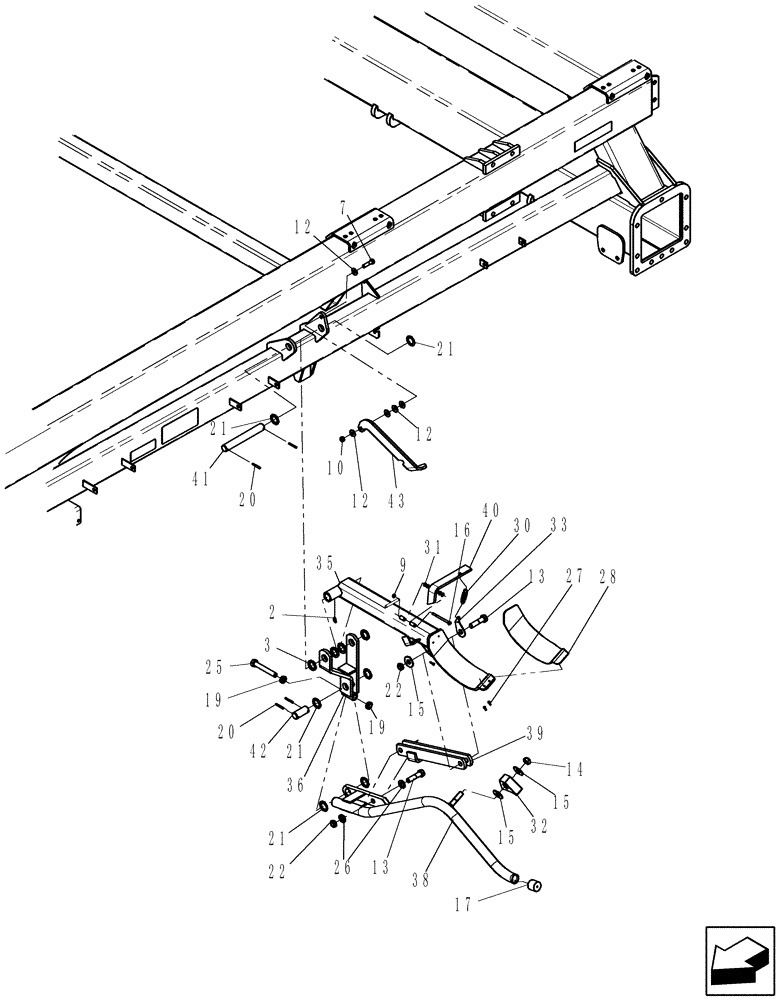

Запчасти Case IH 3580 (58.120.05) - AUGER FRONT SUPPORT ARM (58) - ATTACHMENTS/HEADERS

2

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

3

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

4шт.

7

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

280736

NUT,5/16"-18, GC

1шт.

10

86992215

LOCK NUT,1/2"-13, GC

1шт.

12

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

5шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3шт.

14

280375

NUT,3/4"-10, GC

1шт.

15

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

16

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

17

3419

CAP

vinyl 1 5/8" x 1 1/2"

1шт.

19

86632557

JAM NUT,Jam, 3/4"-10, G5

2шт.

20

86624087

PIN,1/4" x 1 3/4", Coiled

4шт.

21

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

6шт.

22

86754

NUT,3/4"-10, GB

2шт.

25

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

1шт.

26

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

27

8670

RIVET,Pop, 3/16" OD x 3/4" L

pop 3/16" x 3/4"

8шт.

28

9478

WEAR PLATE

lower auger support

1шт.

30

87506268

COIL SPRING

1/16" wire x 3/4" od x 2 1/2" long

1шт.

31

21574

WASHER

31/64" id 19/32" 1/16"

1шт.

32

CA-218

CLAMP

auger tube

1шт.

33

GL-253

BRACKET

spring

1шт.

35

84213742

LATCH

Saddle Bottom, Front

1шт.

36

GL-494

ARM

lock front auger

1шт.

38

84213745

HANDLE

Locking Auger

1шт.

39

84213750

SUPPORT

Link, Lower Auger Rest

1шт.

40

GL-756

CLAMP

lock auger front saddle

1шт.

41

GL-791

HEADLESS PIN

lower auger support - long

1шт.

42

GL-792

HEADLESS PIN

lower auger support - short

1шт.

43

84223698

BAR

Locking, Plate Backer

1шт.
