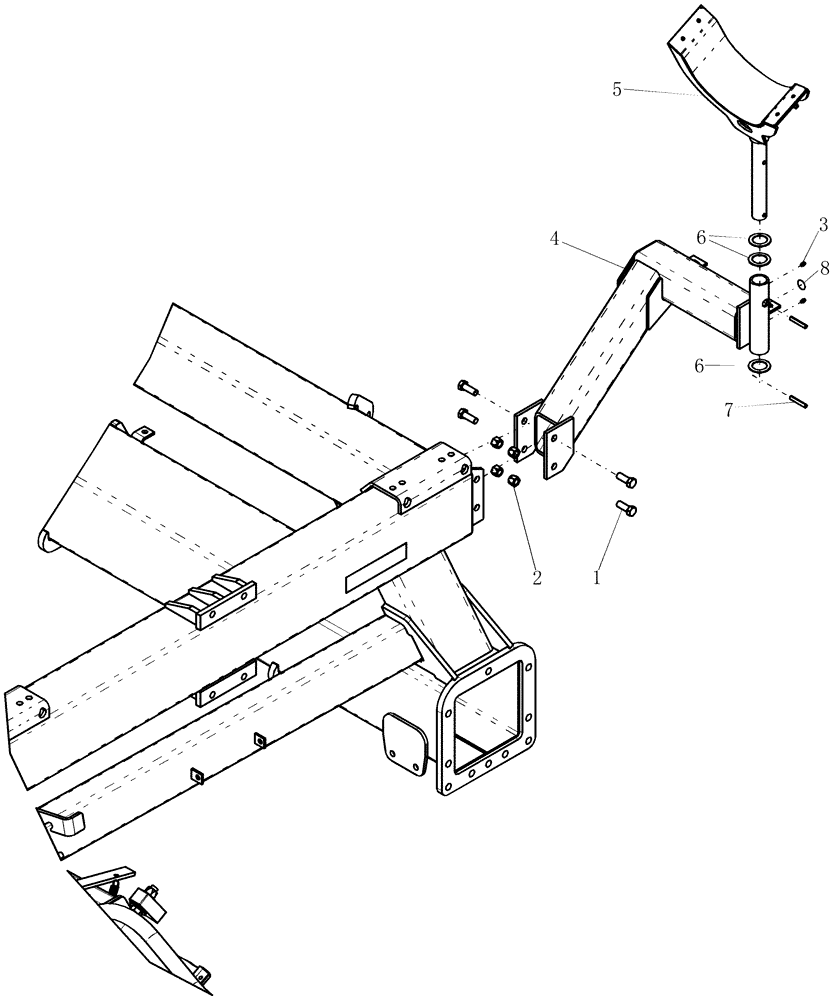

Запчасти Case IH 3580 (58.120.04) - AUGER REAR SUPPORT ARM (58) - ATTACHMENTS/HEADERS

1

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

2

85700693

NUT,5/8" - 11, Gr C

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

4

84205474

ARM

With Auger Rest

1шт.

5

GL-656A

SADDLE

Auger, Complete with Poly Liner and Rivets

1шт.

6

1313

WASHER,1-1/2" ID x 2-1/4" OD x 10 Ga Thk

1 1/2" id 2 1/4" 10ga

3шт.

7

87577

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

8

6567

DECAL

grease 200 hours

1шт.
