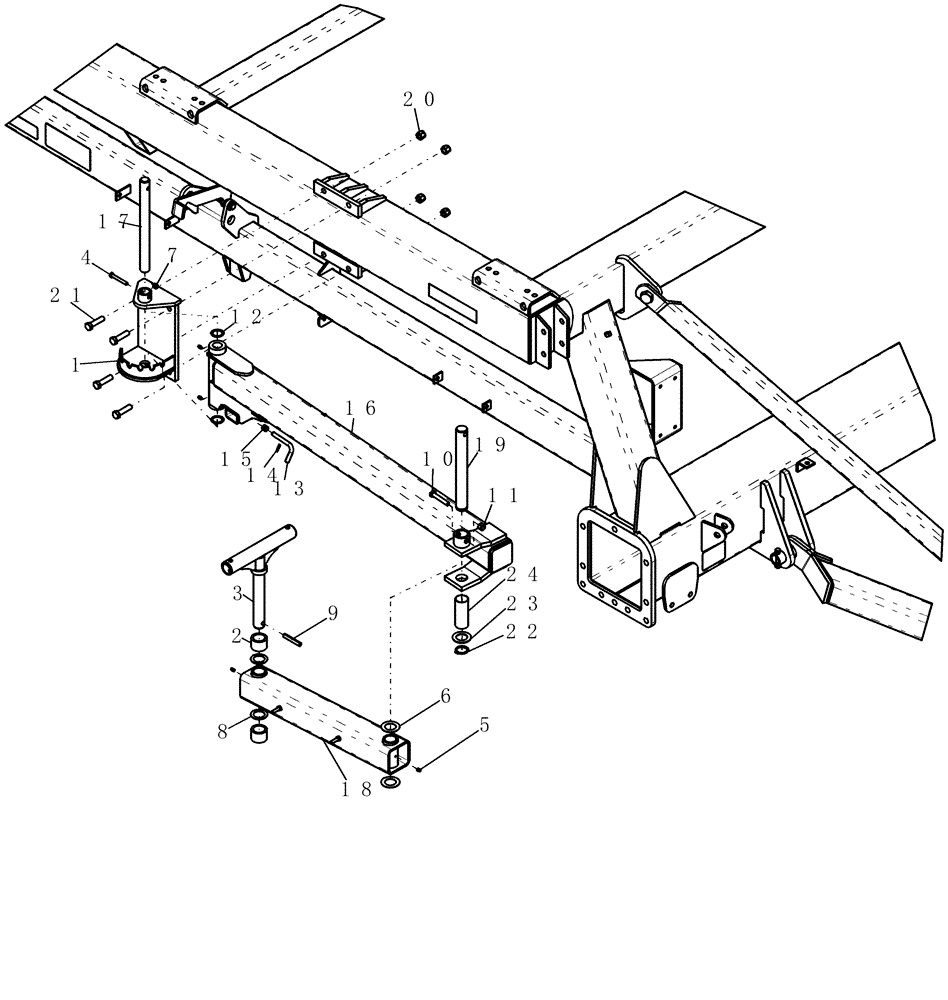

Запчасти Case IH 3580 (58.120.03) - AUGER SWING ARM (58) - ATTACHMENTS/HEADERS

1

84205454

MOUNTING PLATE

Main Arm Pivot

1шт.

2

84265085

TUBE SPACER

2шт.

3

84262710

MOUNT

Auger Pivot

1шт.

4

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

4шт.

6

21303

WASHER

1 1/2" id 2 1/2" 16ga

2шт.

7

9637692

NUT,3/8"-16, GB

1шт.

8

87334418

WASHER,1.5" ID x 2.25" OD x 0.07" Thk

1 33/64" id 2 1/4" 14ga

2шт.

9

4770

ROLL PIN

1/2" x 3"

1шт.

10

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

11

86992215

LOCK NUT,1/2"-13, GC

1шт.

12

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

13

86989314

PIN,12.7mm OD

spring auger arm

1шт.

14

82895491

LOCK PIN,4.76mm OD x 25.4mm L, Slotted

1шт.

15

87505489

COMPRESSION SPRING

23/32" x 2"

1шт.

16

84205466

ARM

Auger Mount

1шт.

17

87502817

PIN

31.75 mm x 344.5 mm, marker pivot

1шт.

18

84205475

ARM

Auger, Short

1шт.

19

87668711

PIN

38.1 x 301.7 mm ul

1шт.

20

85700693

NUT,5/8" - 11, Gr C

4шт.

21

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

4шт.

22

86632531

SNAP RING,#150, Ext

1шт.

23

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

1шт.

24

84271725

TUBE,41.30 mm ID x 44.50 mm OD x 110 mm L

Auger Arm Handle

1шт.
