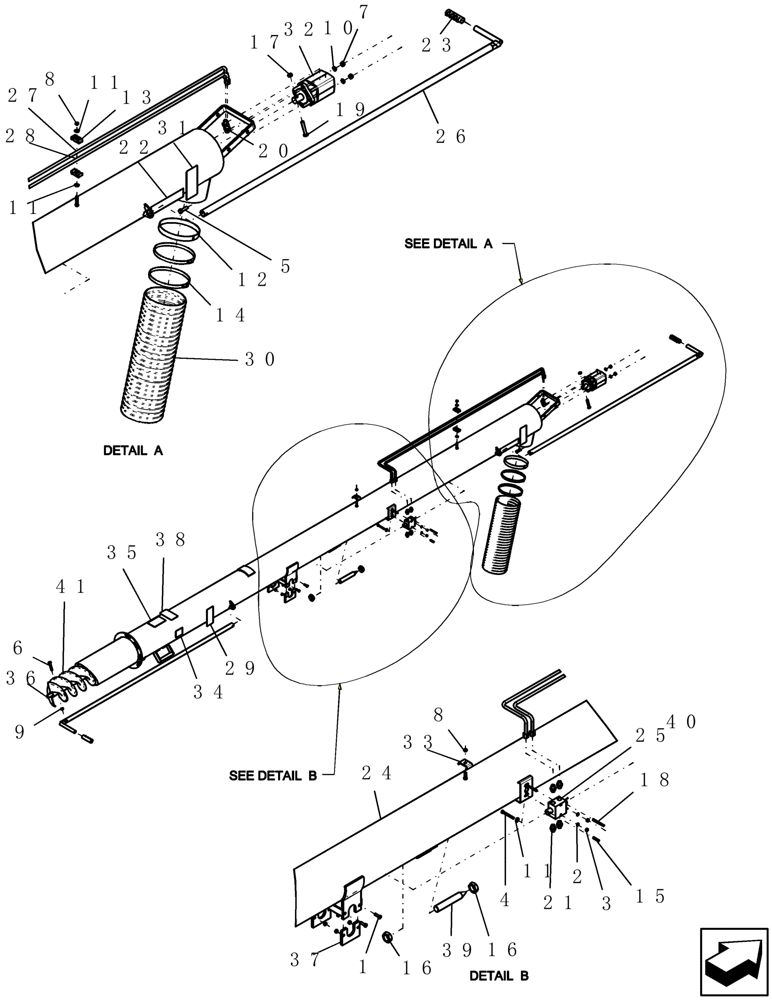

Запчасти Case IH 3580 (58.120.01) - AUGER TUBE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

2

80681

LOCK WASHER,5/16"

2шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

5

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

6

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

7

280431

NUT,1/2"-13, G5

4шт.

8

88902

NUT,3/8"-16

6шт.

9

86992215

LOCK NUT,1/2"-13, GC

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

12

84300017

ADHESIVE STRIP

Anti-Slip 638 mm

1шт.

13

84307616

CLAMP

plastic, hydraulic tube

2шт.

14

5171

HOSE CLAMP

#128 type f 6 1/2" to 8 1/2"

2шт.

15

438-12024

LOCK PIN,5/16" x 1 1/2", Slotted

1шт.

16

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

17

7959

LOCK NUT

1/2"-20, GC

1шт.

18

8559

PIN,5/16" x 3"

roll 5/16" x 3", Slotted

1шт.

19

280561

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

1шт.

20

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

21

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

22

22903

DECAL

retroreflective amber 2" x 9"

2шт.

23

51200111

HANDLE

61/64" x 4 3/8" yellow

2шт.

24

87502443

TUBE,4963 mm L

tube 10"

1шт.

Includes GD-500.80, GD-500.06, GL-700.43, 22903 and 87503917

1шт.

25

87502373

VALVE

hyd rotary

1шт.

26

87502441

CONTROL VALVE

auger

2шт.

27

87502466

LINE

hydraulic auger

1шт.

28

87502495

LINE

auger hydraulic

1шт.

29

87503917

DECAL

auger direction bottom

1шт.

30

84300016

HOSE,890.00 mm

Auger Discharge 8.00" ID X 26.00" Long ( Cut To Length )

1шт.

84147676

HOSE,203.20 mm ID x 15240.00 mm

Bulk Hose 8.00" ID X 50' Long

1шт.

31

443822A1

DECAL

auger direction 2 panel pictorial Europe

1шт.

32

87506224

HYDRAULIC MOTOR

10" auger

1шт.

87506224R

REMAN-HYD MOTOR

3580 (3/10-)

1шт.

87506224C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

33

CC-105

HOSE CLAMP

for 2 hoses

1шт.

34

GD-500.06

DECAL

attention auger

1шт.

35

GD-500.80

DECAL

danger auger flighting

1шт.

36

GL-655

SHORT SHAFT

connector, auger

1шт.

37

GL-657

RETAINER

auger tube

2шт.

38

GL-700.43

DECAL

attention operating auger

1шт.

39

GL-780

HEADLESS PIN

rear auger lock

1шт.

40

87415457

SEAL KIT

hydraulic valve rotary

1шт.

41

GL-654

STEEL FLIGHT

10"

1шт.
