Запчасти Case IH 3580 (55.510.02) - SWITCH UNIT (55) - ELECTRICAL SYSTEMS

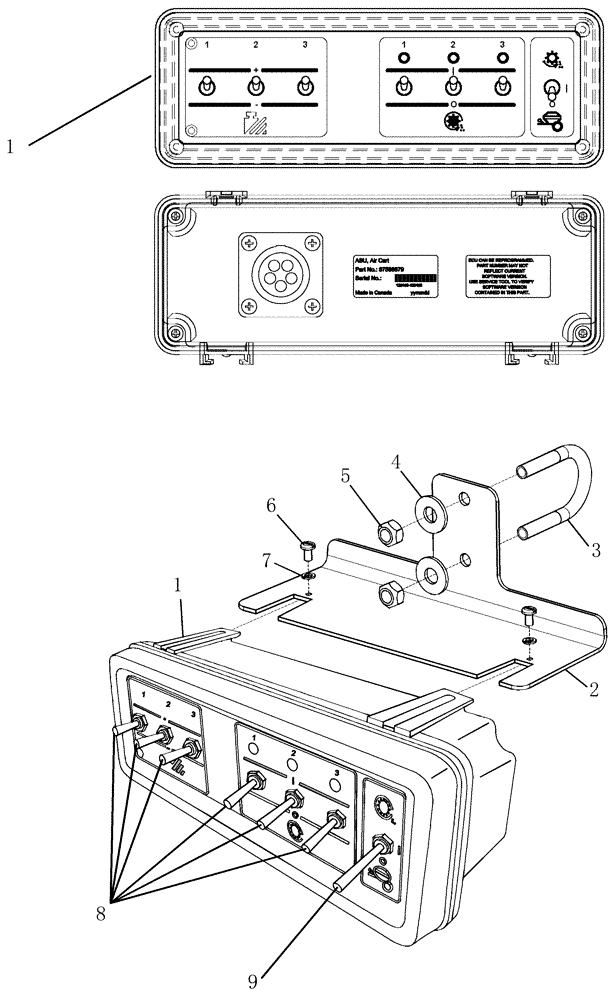

Схема запчастей Case IH 3580 - (55.510.02) - SWITCH UNIT (55) - ELECTRICAL SYSTEMS
4
1
9
2
6
8
1
3
5
7

Артикул

Название

Примечание

Количество

1

87588879

SWITCH

unit, auxiliary

1шт.

If drop shipping, make arrangements for programming.

1шт.

Must be programmed.

1шт.

2

87651139

BRACKET

switch mount

1шт.

3

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

1шт.

4

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

5

280129

NUT,1/4"-20

2шт.

6

84305559

SCREW,Pan, #6 - 32 x 1/4"

machine #6-32 x 1/4"

2шт.

7

87276

LOCK WASHER,3.58mm ID x 6.35mm OD x 0.79mm Thk

2шт.

8

51200015

SWITCH

toggle spdt on off on pwb

6шт.

9

NLS

NO LONGER SERVICED

spdt on off mom pw

1шт.

Выбрано товаров: 11
