Запчасти Case IH 3580 (55.510.01) - DISPLAY MONITOR MOUNT (55) - ELECTRICAL SYSTEMS

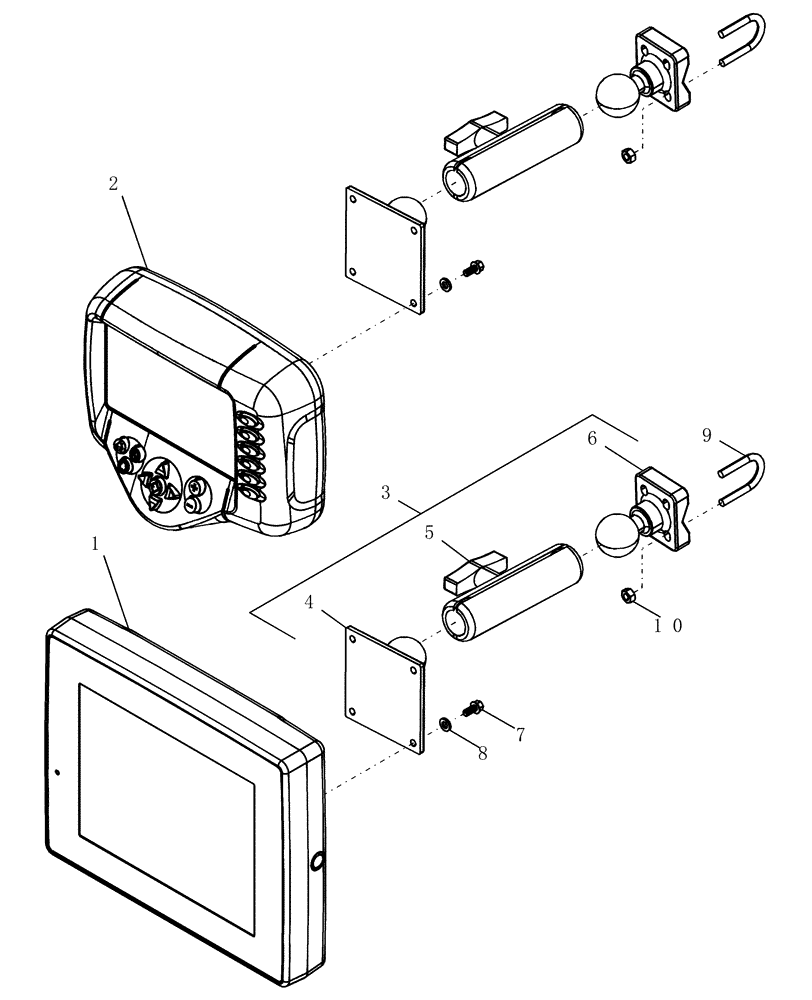

Схема запчастей Case IH 3580 - (55.510.01) - DISPLAY MONITOR MOUNT (55) - ELECTRICAL SYSTEMS
1
2
10
3
7
4
5
8
6
9

Артикул

Название

Примечание

Количество

1

87385125

DISPLAY

field service black

1шт.

1

87385125R

REMAN-ELECT MONITOR

Reman-Monitor 3580 Precision Air Cart

1шт.

1

87385125C

CORE-MONITOR

Return Part Number

1шт.

1

84604338R

REMAN-ELECT MONITOR

3580 (3/10), Reman For 87385125

1шт.

1

84604338C

CORE-MONITOR

Return Part Number

1шт.

2

84240403

CONTROL MONITOR

Small Wide Configurable Display 1.5TS-CIH

1шт.

2

84486874R

REMAN-ELECT MONITOR

3580 (3/10-), Reman for New PN 84240403

1шт.

2

84486874C

CORE-MONITOR

Return Part Number

1шт.

3

87386396

MOUNT

Mount Color Display

1шт.

4

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

5

87284257

ARM

Supporting

1шт.

6

87284259

PLATE

Base, Double U-bolt

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

11

GL-521

MOUNTING PARTS

implement receptacle

1шт.

Not Shown

1шт.

Выбрано товаров: 18
