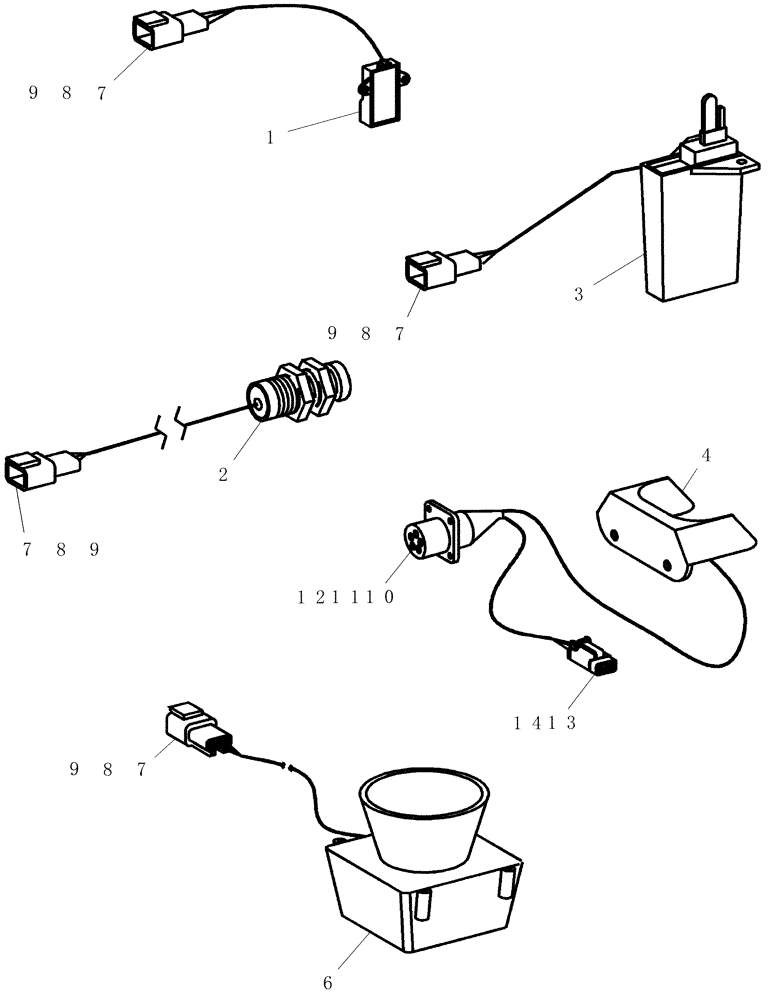

Запчасти Case IH 3580 (55.424.01) - SENSORS (55) - ELECTRICAL SYSTEMS

1

13919

SENSOR

shaft

1шт.

2

13976

SENSOR

shaft

1шт.

2

425045A1

NUT

7/8"-20 x 1/4" thick

2шт.

3

13637V2

SENSOR

air flow

1шт.

4

87508154

KIT

Optical Bin Level

1шт.

Includes 11806, 3897, four 9445, four 9446, two 9447, two 9448 and two 9527

1шт.

6

425096A1

SENSOR

bin level, sonar

1шт.

6

84529354R

REMAN-SENSOR

3580 PRECISION AIR CART, bin level, sonar (3/10-), Reman for New PN 425096A1

1шт.

6

84529354C

CORE-SENSOR

Return Number

1шт.

7

280448A1

STOP LOCK

3c receptacle connector

1шт.

8

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

9

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

3шт.

10

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

11

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

12

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

1шт.

13

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

14

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.

100

8393

TESTER

5v & 12v sensors

1шт.

Not Shown

1шт.

100

13889V2

TOOL

signal simulator unit, digital

1шт.

Not Shown

1шт.
