Запчасти Case IH 3580 (55.404.09) - PIN SENSOR EXTENSION CABLE 4.6M (55) - ELECTRICAL SYSTEMS

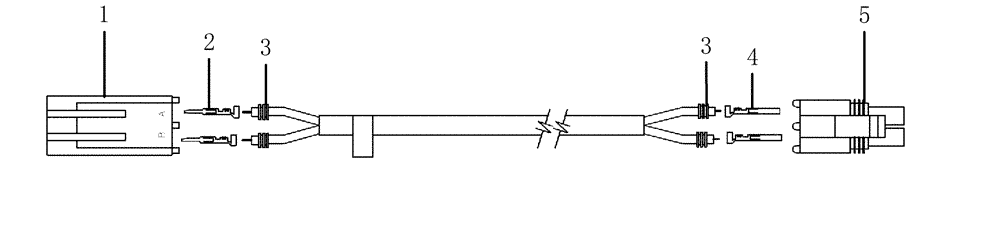

Схема запчастей Case IH 3580 - (55.404.09) - PIN SENSOR EXTENSION CABLE 4.6M (55) - ELECTRICAL SYSTEMS
4
3
2
1
5
3

Артикул

Название

Примечание

Количество

0

10578

HARNESS

Extension, PS, 4.6 m

1шт.

1

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

2

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.

3

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

Выбрано товаров: 6
