Запчасти Case IH 3580 (55.404.05) - BEACON LIGHTING (55) - ELECTRICAL SYSTEMS

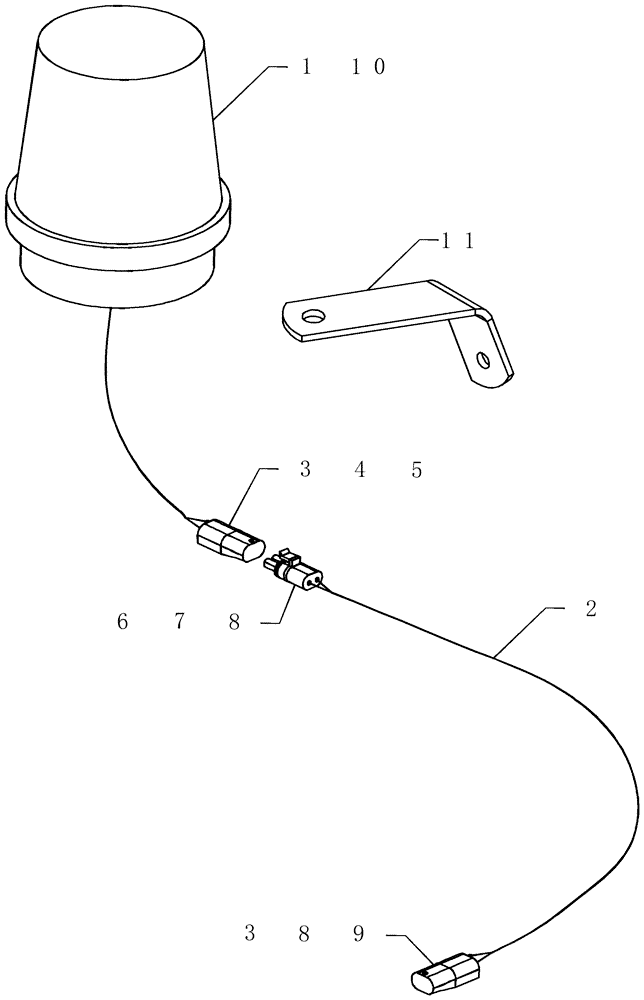

Схема запчастей Case IH 3580 - (55.404.05) - BEACON LIGHTING (55) - ELECTRICAL SYSTEMS
2
7
6
4
8
3
11
5
1
3
9
8
10

Артикул

Название

Примечание

Количество

1

412915A1

BEACON

assembly rotating yellow 12v

1шт.

2

10578

HARNESS

Extension, PS, 4.6 m

1шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

2шт.

4

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.

5

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

7

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

2шт.

8

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

4шт.

9

225119C1

TERMINAL

14-16awg

2шт.

10

87682687

BULB

35 watt halogen

1шт.

11

GL-348

BRACKET

mount beacon light

1шт.

Выбрано товаров: 11
