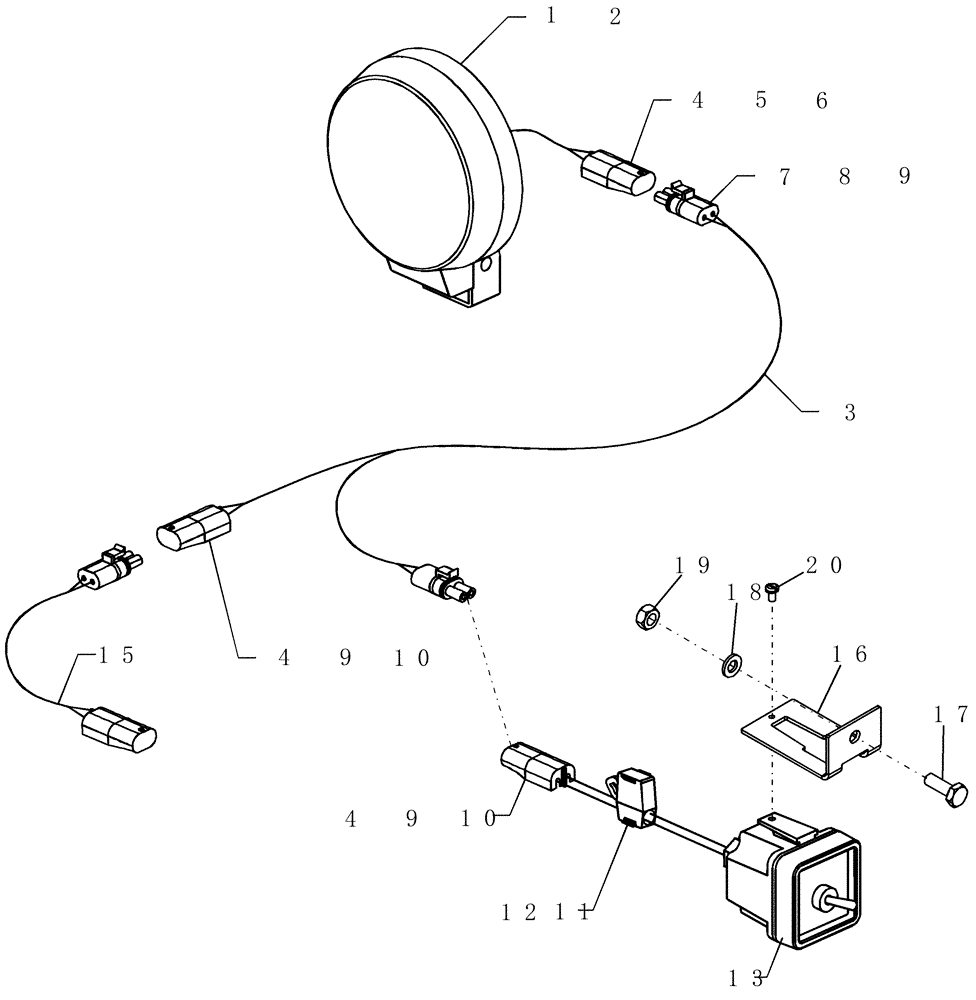

Запчасти Case IH 3580 (55.404.04) - AUGER LIGHTING (55) - ELECTRICAL SYSTEMS

1

87564182

LIGHT

auger 55w pilot

1шт.

2

9703399

BULB,H3, 12V, 55W

lamp assy, halogen h3-12v-55w

1шт.

3

425258A1

HARNESS

auger light

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

3шт.

5

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.

6

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

8

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

4шт.

9

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

8шт.

10

225119C1

TERMINAL

14-16awg

4шт.

11

13972

FUSE HOLDER

inline ato 12awg

1шт.

12

84090658

FUSE,Lt Blue, 15 Amp

15 Amp, Type A

1шт.

13

425061A1

SWITCH

on/off

1шт.

14

425064A1

CABLE

jumper 1 m x 2c Packard

1шт.

Refer to 55.100.11

1шт.

Not Shown

1шт.

15

10578

HARNESS

Extension, PS, 4.6 m

1шт.

16

84290824

BRACKET

Auger Light Switch

1шт.

17

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

18

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

19

280129

NUT,1/4"-20

1шт.

20

21304

SELF-TAP SCREW

#6-32 x 5/16"

1шт.
