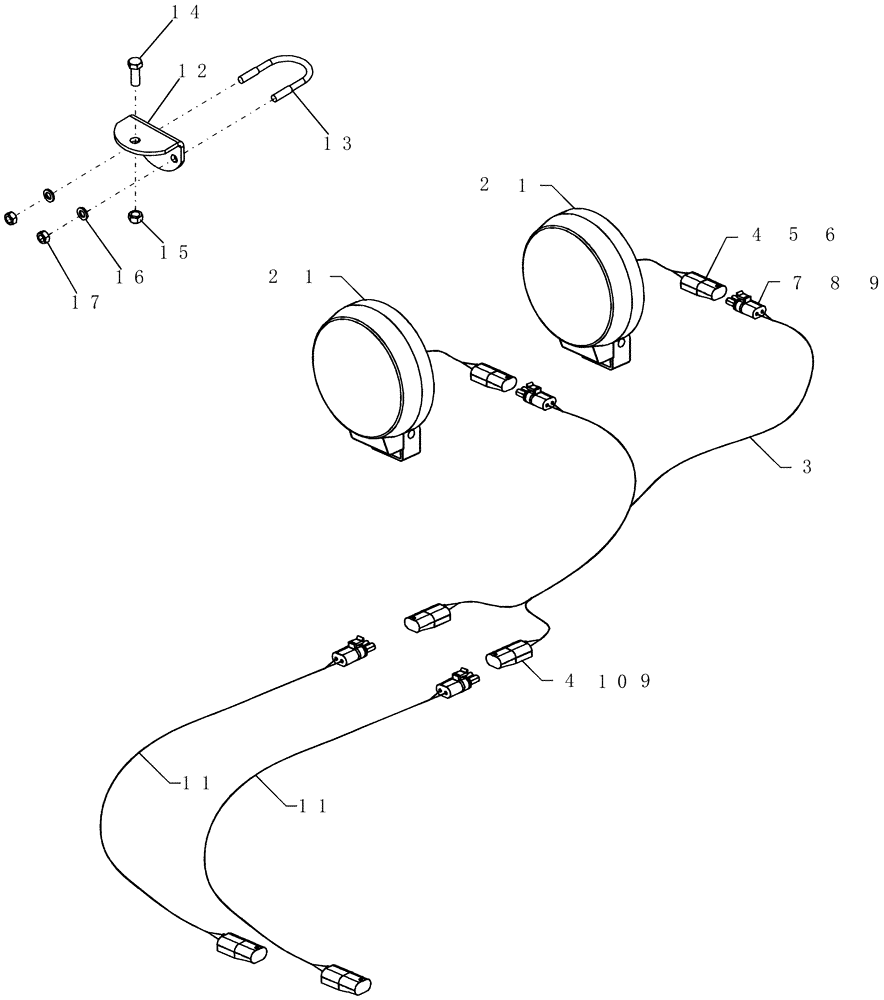

Запчасти Case IH 3580 (55.404.03) - WORK LIGHTING (55) - ELECTRICAL SYSTEMS

1

425060A1

LIGHT

work 100w pilot

2шт.

2

87506447

BULB

light, 100 watt

2шт.

3

425257A1

HARNESS

work lights

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

4шт.

5

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

4шт.

6

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

8

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

4шт.

9

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

8шт.

10

225119C1

TERMINAL

14-16awg

4шт.

11

425064A1

CABLE

jumper 1 m x 2c Packard

2шт.

12

GL-338

BRACKET

field light

2шт.

13

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

2шт.

14

NSS

NOT SOLD SEPARAT

BOLT 7/16" x 1"

2шт.

15

NSS

NOT SOLD SEPARAT

LOCKNUT 7/16"

2шт.

16

80681

LOCK WASHER,5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.
