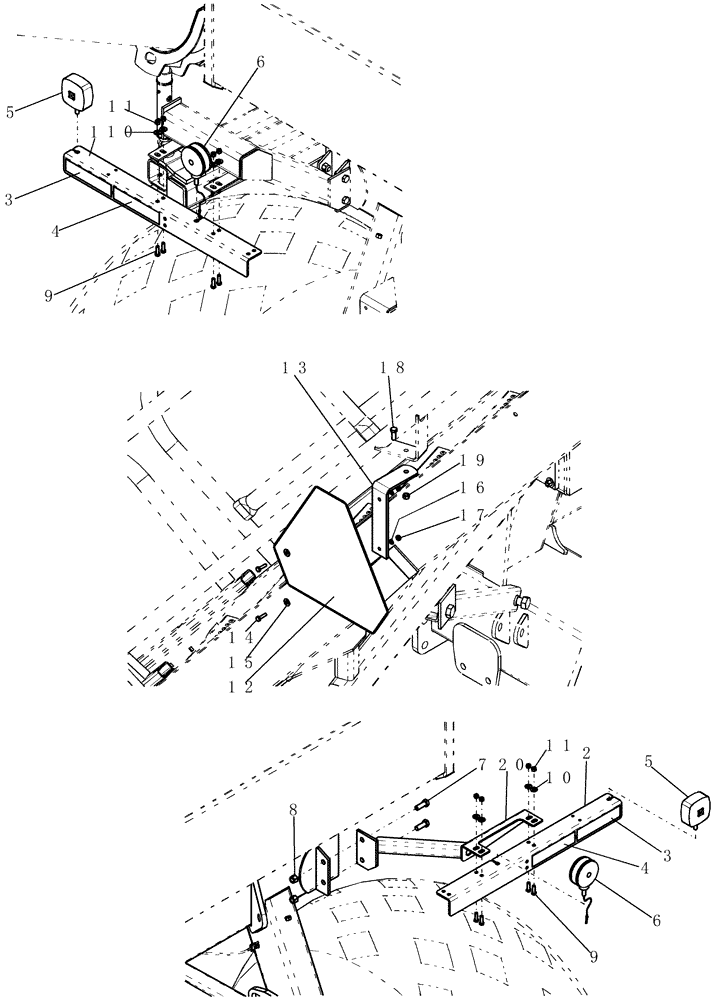

Запчасти Case IH 3580 (55.404.01) - TRANSPORT LIGHTING AND SMV SIGN (55) - ELECTRICAL SYSTEMS

1

87446015

BAR

transport light LH

1шт.

2

87446014

BAR

transport light RH

1шт.

3

22902

DECAL

retroreflective red 2" x 9"

2шт.

4

51200094

DECAL

fluorescent red orange

2шт.

5

87564157

WARNING LIGHT

assembly amber

2шт.

6

51200040

LIGHT

assy. stop tail/signal red

2шт.

7

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

11

9637692

NUT,3/8"-16, GB

8шт.

12

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

13

GI-858

BRACKET

smv sign

1шт.

14

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

16

80682

LOCK WASHER,1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

2335

NUT,3/8"-16, G5

1шт.

20

84270467

ARM

Transport Light Bracket

1шт.
