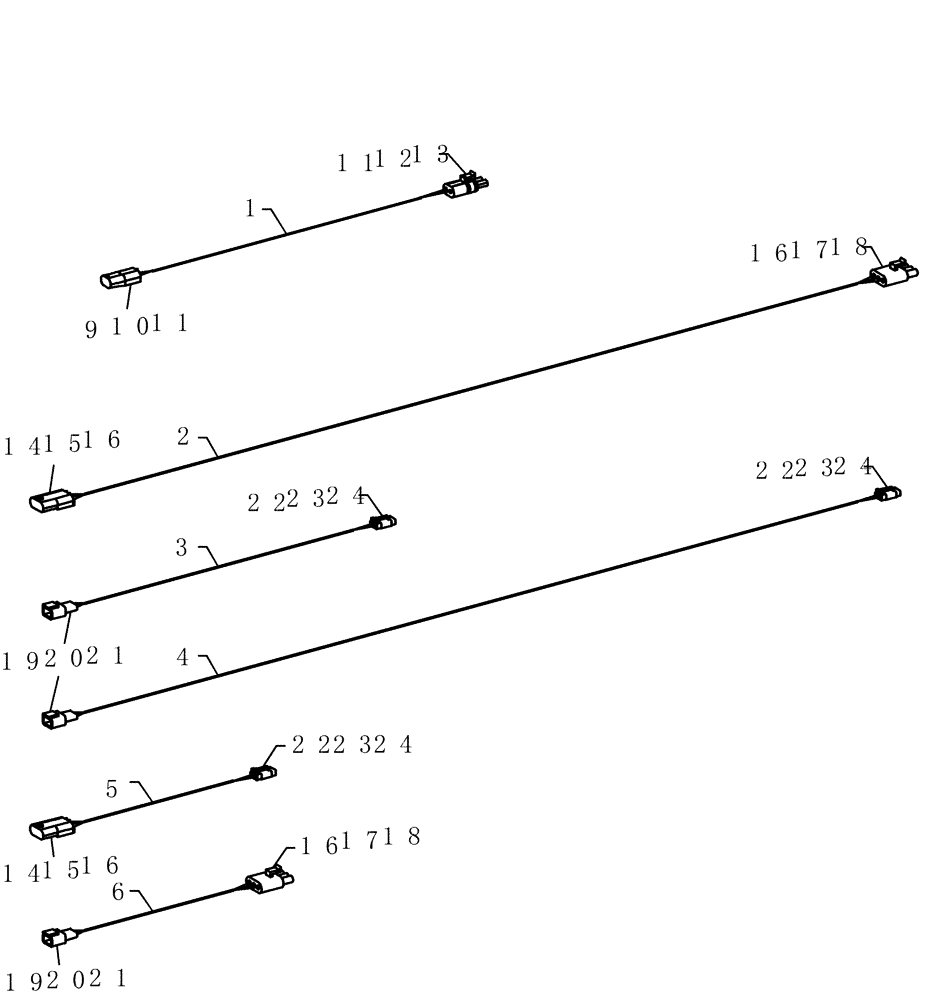

Запчасти Case IH 3580 (55.100.11) - JUMPER CABLES SERVICE KIT (55) - ELECTRICAL SYSTEMS

0

14420K

KIT

service jumper cables

1шт.

Includes the following harnesses

1шт.

1

425064A1

CABLE

jumper 1 m x 2c Packard

1шт.

Included in Kit 14420K

1шт.

2

425272A1

ELECTRIC CABLE

jumper 3 m x 3c Packard

1шт.

Included in Kit 14420K

1шт.

3

87505189

HARNESS

jumper 1 m x 3c dtm

1шт.

Included in Kit 14420K

1шт.

4

425274A1

ELECTRIC CABLE

jumper 3 m x 3c dtm

1шт.

Included in Kit 14420K

1шт.

5

425275A1

HARNESS

cable sensor test adapter

1шт.

Included in Kit 14420K

1шт.

6

425276A1

HARNESS

sensor tester adapter

1шт.

Included in Kit 14420K

1шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

10

225119C1

TERMINAL

14-16awg

3шт.

11

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

13

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

3шт.

14

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

3шт.

15

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

8шт.

16

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

17шт.

17

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

3шт.

18

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

9шт.

19

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

3шт.

20

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

9шт.

21

280448A1

STOP LOCK

3c receptacle connector

3шт.

22

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

3шт.

23

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

9шт.

24

87705586

WEDGE

lock 3c plug

3шт.
