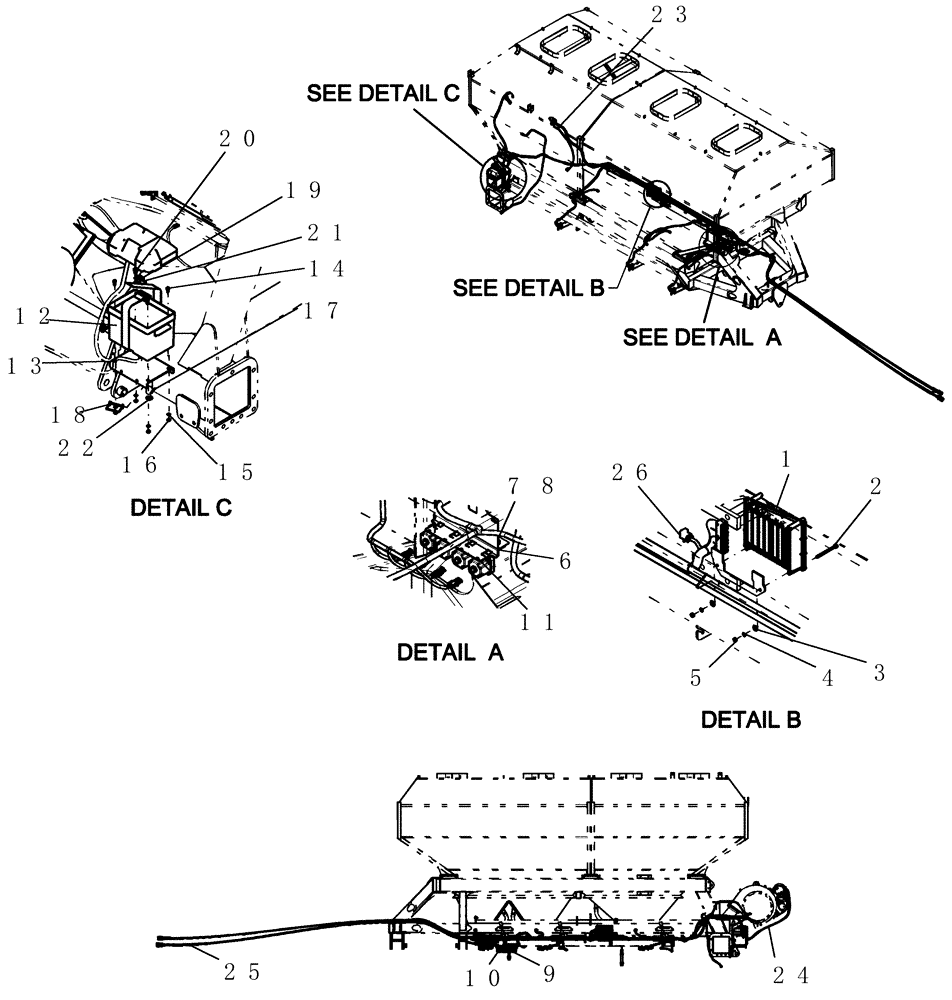

Запчасти Case IH 3580 (55.100.00) - AIR SYSTEM ELECTRONICS LAYOUT (55) - ELECTRICAL SYSTEMS

1

84388675

ECU

1шт.

84388675R

REMAN-INSTR CLUSTER

3580 (3/10-)

1шт.

84388675C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

2шт.

3

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

4

80682

LOCK WASHER,1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

6

84249760

BRACKET

Switch Mount Multiple

1шт.

7

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

280736

NUT,5/16"-18, GC

2шт.

9

84307649

SWITCH

Calibration

1шт.

10

87641950

SWITCH

meter on/off - *NOTE* IF SWITCH HAS INLINE FUSE ORDER PART NUMBER 13924

3шт.

11

21304

SELF-TAP SCREW

#6-32 x 5/16"

4шт.

12

51200136

BATTERY BOX

with strap and lid

1шт.

12

B2472W

WET BATTERY

US Only - Not Illustrated

1шт.

12

CC2472W

WET BATTERY

Canada Only - Not Illustrated

1шт.

13

GL-283

TRAY

mount, battery - swivel

1шт.

14

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

80681

LOCK WASHER,5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

18

6854

PIN

quick - 1/4" x 2 1/2" usable

1шт.

19

9966

RELAY

electrical, 12 volt

1шт.

20

51200085

RIVET

pop 3/16" x 7/16"

1шт.

21

412731A1

CLAMP

cable, nylon

1шт.

22

4285

WASHER

3/4" id 18ga

2шт.

23

419978A1

HARNESS

lighting, cart, tow behind

1шт.

24

419982A1

HARNESS

alternator VR air cart

1шт.

25

84213650

HARNESS

Tow Behind, Air Cart

1шт.

26

87601142

ELEC CONNECTOR,Female, 6 Cavities

electronic control unit

1шт.
