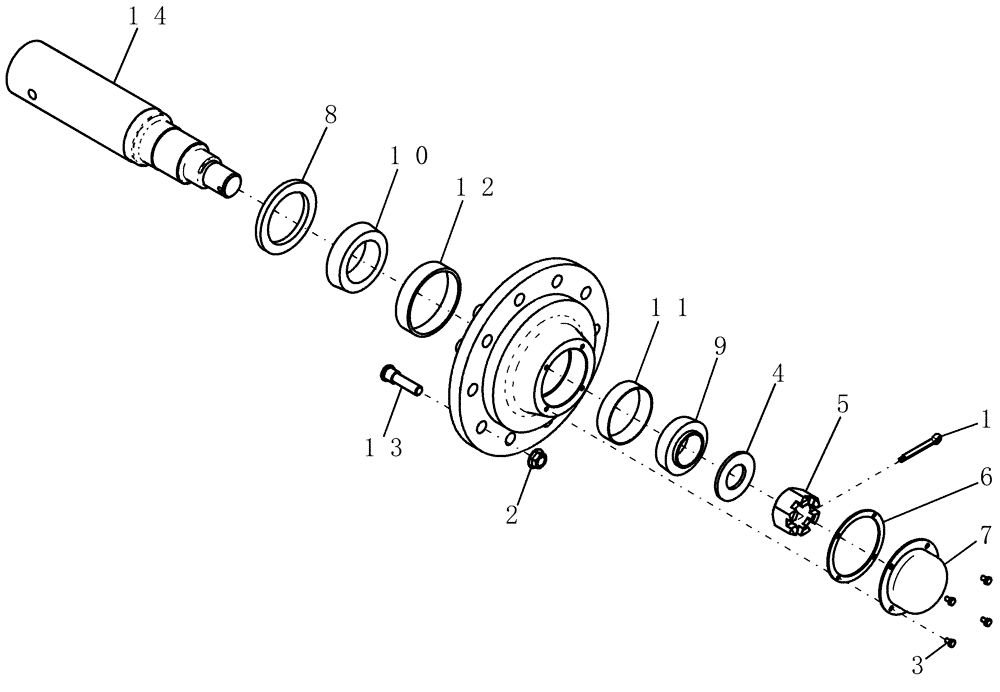

Запчасти Case IH 3580 (44.100.01) - FRONT HUB/SPINDLE ASSEMBLY - 10 BOLT (BSN - YCS015062) (44) - WHEELS

1

86523960

COTTER PIN,3/8" x 3"

1шт.

2

429-2912

FLANGE NUT,Flg, 3/4"-16, G8

1шт.

3

1027683

BOLT

wheel 5/16"-18 x 1/2", G2

1шт.

4

51200133

WASHER,52mm ID x 101.6mm OD x 6.35mm Thk

spindle wa35 2 1/32" id

1шт.

5

51200125

SLOTTED NUT,2"-12, G5

1шт.

6

9861

GASKET

rubber

1шт.

7

87506288

HUB CAP

dc28 bolt on

1шт.

8

9864

OIL SEAL

oil SE55

1шт.

9

86837562

ROLLER BEARING,66.67mm ID x 38.35mm W

#HM212049

1шт.

10

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

#HM218248

1шт.

11

70680631

BEARING CUP,122.24mm OD x 29.72mm W

#HM212010

1шт.

12

A50529

BEARING CUP,147.03mm OD x 32.5mm W

#HM218210

1шт.

13

22792

STUD

3/4"-16 x 3 9/32", G5

1шт.

14

84205386

SPINDLE

S1020, 114.3 x 527

1шт.

Includes 51200133 and 51200125

1шт.
