Запчасти Case IH 3580 (44.100.01[01]) - FRONT HUB/SPINDLE ASSEMBLY - 10 BOLT (YCS015063 - CURRENT) (44) - WHEELS

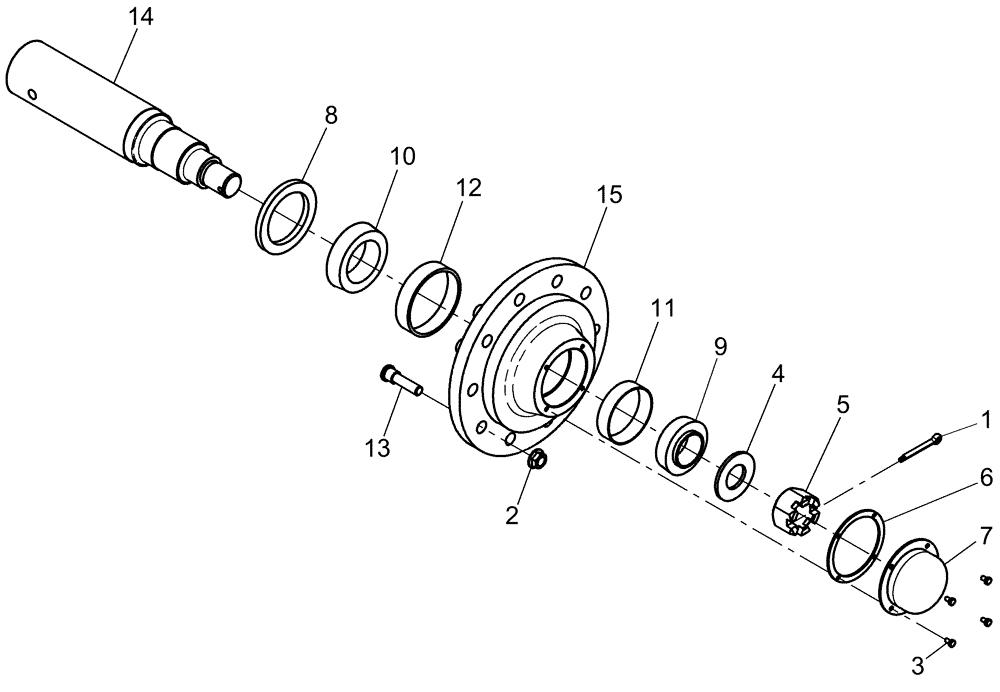

Схема запчастей Case IH 3580 - (44.100.01[01]) - FRONT HUB/SPINDLE ASSEMBLY - 10 BOLT (YCS015063 - CURRENT) (44) - WHEELS
1
12
5
3
4
15
10
7
11
6
9
14
13
8
2

Артикул

Название

Примечание

Количество

1

86523960

COTTER PIN,3/8" x 3"

1шт.

2

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

3

7669

BOLT

4шт.

4

51200133

WASHER,52mm ID x 101.6mm OD x 6.35mm Thk

Included In 14, Washer, 2.03 I.D.

1шт.

5

9235

SLOTTED NUT,2"-12, G5

Included In 14, 2.00"-12, G5

1шт.

6

9861

GASKET

1шт.

7

87506288

HUB CAP

1шт.

8

9864

OIL SEAL

1шт.

9

86837562

ROLLER BEARING,66.67mm ID x 38.35mm W

1шт.

10

9866

ROLLER BEARING

1шт.

11

9868

BEARING CUP

1шт.

12

9869

BEARING CUP

1шт.

13

22792

STUD

0.75 UNF, GR5

10шт.

14

84551188

SPINDLE

Includes 4 & 5, 114.3 X 594

1шт.

15

87506289

HUB

Incuded In 16, Hub, H1021

1шт.

Выбрано товаров: 15
