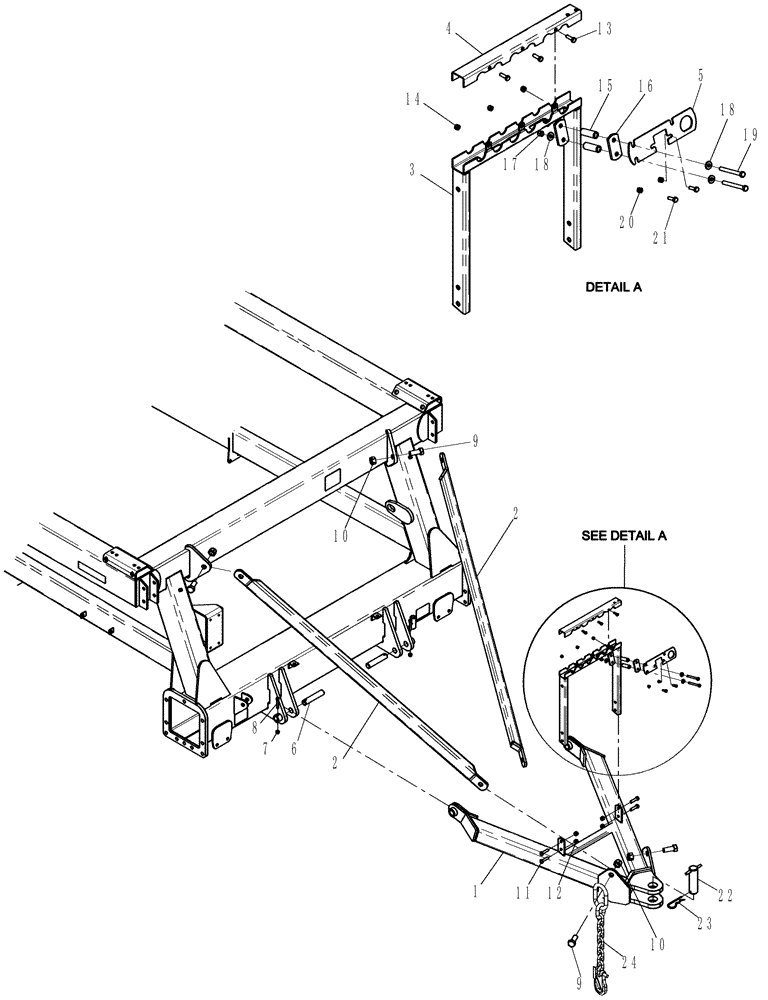

Запчасти Case IH 3580 (39.100.10) - REAR HITCH (39) - FRAMES AND BALLASTING

1

GL-164

HITCH

rear

1шт.

2

84249738

STRUT

Rear Hitch, Upper

2шт.

3

GI-358

BRACKET

mount, hyd hose

1шт.

4

GI-359

HOLDER

hyd coupler - top

1шт.

5

GL-803

HITCH BRACKET

mount, rear

1шт.

6

GL-610

HITCH PIN

rear

2шт.

7

280980

NUT,7/16"-14, GC

2шт.

8

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

2шт.

9

16505

BOLT,Hex, 1" - 8 x 2 1/2", Gr 5, Full Thd

2шт.

10

280286

NUT,1"-8, GB

2шт.

11

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

12

86992215

LOCK NUT,1/2"-13, GC

4шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

14

280736

NUT,5/16"-18, GC

3шт.

15

GH-119

SPACER

hose strap

2шт.

16

GH-136

PLATE

bolt

2шт.

17

88902

NUT,3/8"-16

2шт.

18

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

19

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

20

280736

NUT,5/16"-18, GC

2шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

22

GD-919

PIN

draw, rear hitch

1шт.

23

419985A1

HAIR PIN COTTER

1/4" x 5"

1шт.

24

87619912

CHAIN

Safety Chain, 40,000 LB

2шт.
