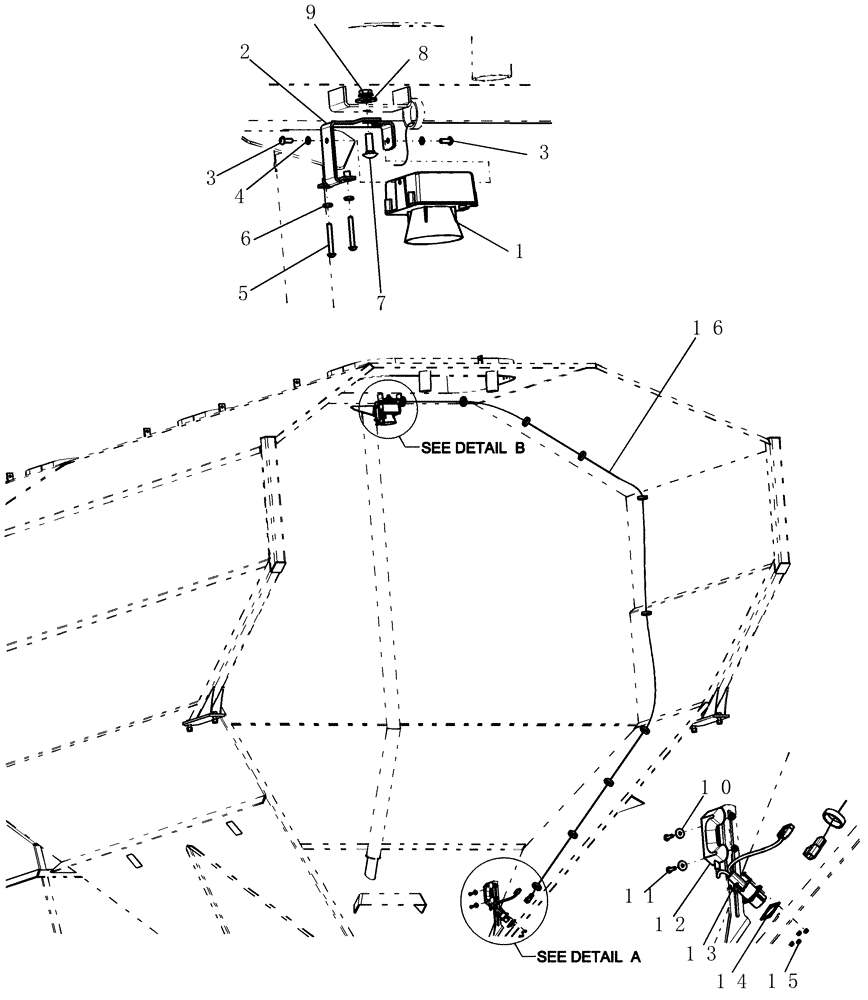

Запчасти Case IH 3580 (39.100.09) - BIN SENSORS (39) - FRAMES AND BALLASTING

1

425096A1

SENSOR

bin level, sonar

1шт.

1

84529354R

REMAN-SENSOR

3580 PRECISION AIR CART, bin level, sonar (3/10-), Reman for New PN 425096A1

1шт.

1

84529354C

CORE-SENSOR

Return Number

1шт.

2

GL-349

BRACKET

mount, bin level sensor - ultrasonic

1шт.

3

9528

HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST

machine #10-32 x 1/2" rh skt-slt ss

2шт.

4

9587

LOCK WASHER

#10 ss

2шт.

5

9588

SCREW,Sl Sq, #10 - 32 x 1.50"

mch #10-32 x 1 1/2" rh sq-slt ss

2шт.

6

9589

NUT

#10-32 ss

2шт.

7

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

8

8633

WASHER

7/16" id x 1" od x 5/64" thick, ss

1шт.

9

9586

FLANGE NUT

flange 5/16" serrated

1шт.

10

9977

WASHER

1/64" id 5/8" 1/16" ss

2шт.

11

9447

SCREW,Pan Hd, #10 - 24 x 0.75", Sl Sq Drive

mch #10-24 x 3/4" ph sq-slt ss

2шт.

12

87508154

KIT

Optical Bin Level

1шт.

13

9445

SCREW,Pan Hd, #4 - 40 x 5/8", Stainless

mch #4-40 x 5/8" ph pi ss

4шт.

14

51200017

GASKET,25.4mm ID x 1.6mm Thk

rubber, 25 mm id X 2.5 mm thick

1шт.

15

412912A1

LOCK NUT

#4-40, stainless steel

4шт.

16

419966A1

HARNESS

bin level sensor 2.01 m

1шт.
