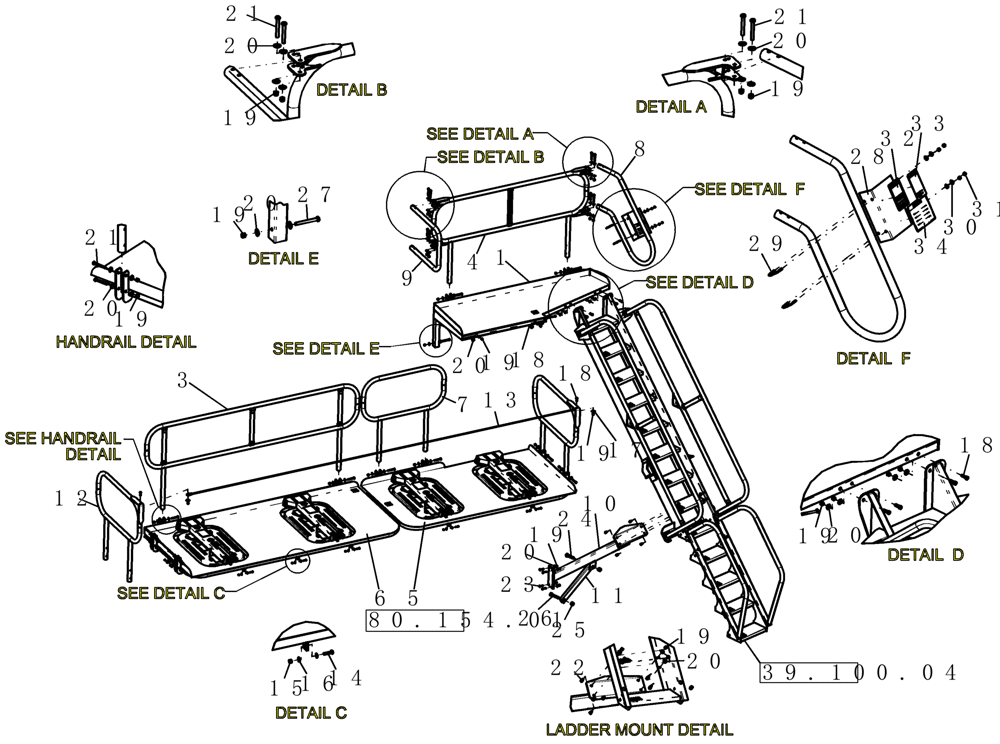

Запчасти Case IH 3580 (39.100.06) - PLATFORM AND LANDING (39) - FRAMES AND BALLASTING

1

84205491

PLATFORM

Landing

1шт.

3

84213687

HANDRAIL

Back Upper

1шт.

4

84213685

PLATFORM

Handrail Landing

1шт.

5

84205443

PLATFORM

Top Front

1шт.

6

84213533

PLATFORM

Top Rear

1шт.

7

84213688

HANDRAIL

Upper Front

1шт.

8

84205448

HANDRAIL

Frame Platform

1шт.

9

84205484

HANDRAIL

Frame Platform

1шт.

10

84213566

BRACKET

Mounting, Stairs, Bottom

1шт.

11

84213589

STRUT

Stairway Support

1шт.

12

84270043

HANDRAIL

Cable Mount

2шт.

13

84270041

CABLE

Safety

1шт.

14

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

14шт.

15

20356

NUT,1/4"-20, GB

14шт.

16

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

28шт.

17

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

18

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

19

9637692

NUT,3/8"-16, GB

46шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

76шт.

21

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

28шт.

22

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

24

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

25

280375

NUT,3/4"-10, GC

2шт.

26

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

27

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

28

GL-294

PLATE

decal tank safety

1шт.

29

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

2шт.

30

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

31

86629544

NUT,5/16” – 18, GR B

4шт.

32

GD-500.79

WARNING DECAL

stop fan

1шт.

33

GD-500.71

WARNING DECAL

do not ride

1шт.

34

GL-700.08

DECAL

attention before filling

1шт.
