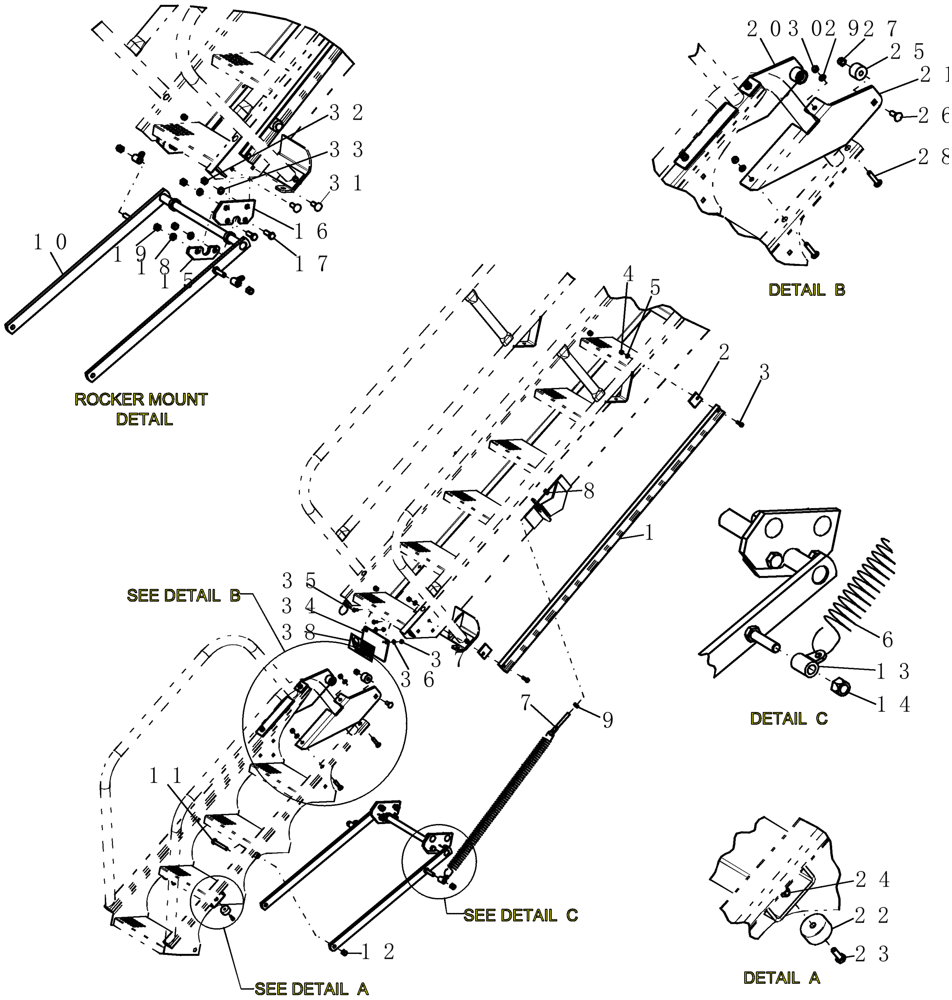

Запчасти Case IH 3580 (39.100.05) - EXTERNAL LADDER - FOLD OPTION (39) - FRAMES AND BALLASTING

1

GI-843

GUIDE

track, stairway

2шт.

2

GI-851

SPACER

stairway track

4шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

9628503

NUT,3/8"-16, G5

4шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

6

22609\C

TENSION SPRING

9/32" wire x 1 57/64" od 19 1/4" body 22-inside hooks 67 -coils

2шт.

7

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

2шт.

8

280431

NUT,1/2"-13, G5

2шт.

9

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

GI-850

ROCKSHAFT

stairway

1шт.

11

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

12

86992215

LOCK NUT,1/2"-13, GC

2шт.

13

GI-849

BRACKET, PIVOT

PIVOT BRACKET spring assist

2шт.

14

86992215

LOCK NUT,1/2"-13, GC

2шт.

15

GI-848

JOURNAL

stairway pivot, bottom

2шт.

16

84205492

PIVOT

Top Journal

2шт.

17

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

19

280431

NUT,1/2"-13, G5

4шт.

20

84205493

PLATE

Stairway Travel LH

1шт.

21

84205494

PLATE

Stairway Travel RH

1шт.

22

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

2шт.

23

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

24

20356

NUT,1/4"-20, GB

2шт.

25

GI-844

ROLLER

nylon, stairway guide

2шт.

26

22682

CARRIAGE BOLT

7/16"-14 x 1 1/4", G5

2шт.

27

280980

NUT,7/16"-14, GC

2шт.

28

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

4шт.

29

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

30

9628503

NUT,3/8"-16, G5

4шт.

31

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

32

280431

NUT,1/2"-13, G5

4шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

34

84305410

PLATE

PLATE decal caution ladder

1шт.

Includes 84300018

1шт.

35

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

36

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

37

20356

NUT,1/4"-20, GB

2шт.

38

84300018

DECAL

DECAL caution ladder

1шт.
