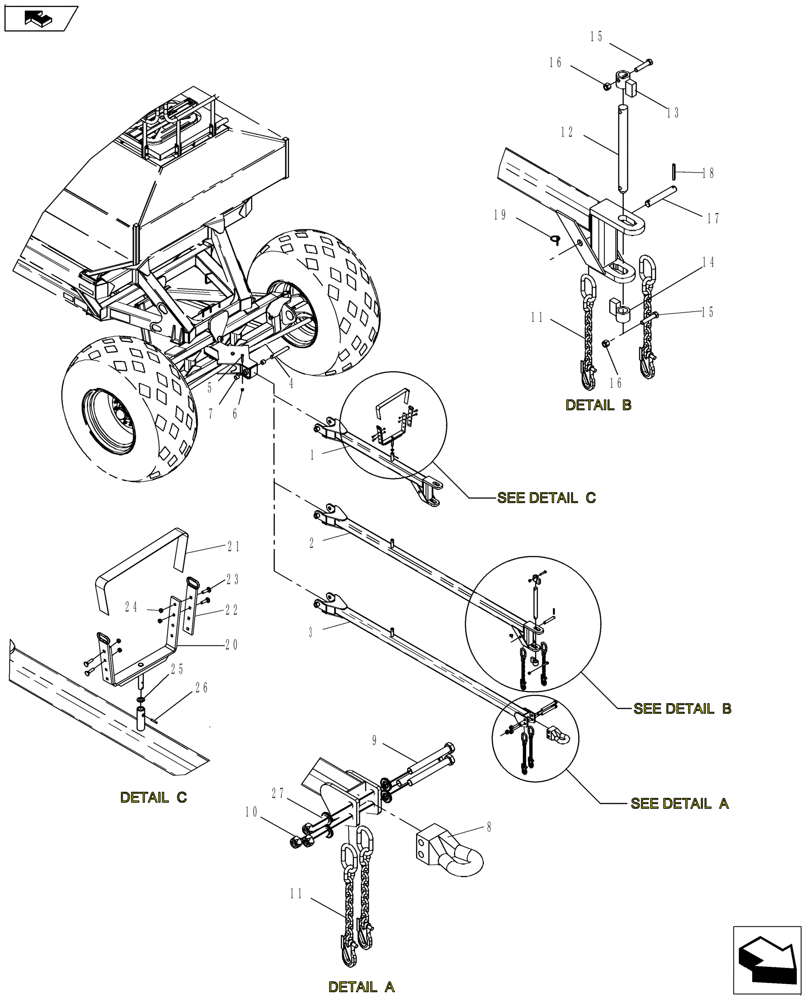

Запчасти Case IH 3580 (39.100.03) - FRONT HITCH (BSN - YCS015062) (39) - FRAMES AND BALLASTING

1

84290819

HITCH

580 Cart

1шт.

2

84213759

HITCH

Air Cart Front

1шт.

3

84249754

HITCH

Air Cart Front

1шт.

4

84205397

PIN

38.1 mm x 245 mm ul

1шт.

5

280340

BOLT,Hex, 5/8" - 18 x 3 1/2", Gr 5

, Years: -01-MAR-10

1шт.

5

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

, Start Year: 01-MAR-10

1шт.

6

85700693

NUT,5/8" - 11, Gr C

1шт.

7

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

composite 1 3/4" x 1 1/2" x 1 1/2"

2шт.

8

87506220

HITCH

hitch

1шт.

8

84471082

HITCH

CAT 4,5 , Not Shown

1шт.

9

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

3шт.

10

9626600

NUT,1"-8, GC

3шт.

11

87619912

CHAIN

safety, 40,400 lb

2шт.

12

87420139

PIN,38.1mm OD x 439mm L

38.1 x 378 ul

1шт.

13

87505049

LOCK PIN

Top

1шт.

14

87505047

LOCK PIN

bottom

1шт.

15

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

16

85700693

NUT,5/8" - 11, Gr C

2шт.

17

87420138

PIN

25.4 x 136 ul, 2 holes

2шт.

18

3661

LOCK PIN,3/8" x 3", Slotted

2шт.

19

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

2шт.

20

GH-951

STRAP

hose support

1шт.

21

9283

STRAP

2" x 78"

1шт.

22

GH-952

STRAP

hose support extension

2шт.

23

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

2шт.

24

88902

NUT,3/8"-16

2шт.

25

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

1шт.

26

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

27

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625" x 2" x 0.134"

4шт.
